Describe a marine part. Watch it drafted, built and weighed.

Invictus CAD reads a brief written in plain words, draws the GA, builds the parametric 3D model and states its mass with the basis. Then it carries the job: assemblies, enquiries, approvals, inspection photos and the logs.

Try it live: describe a part Open a demo project

The live demo runs on a demo account with fictional data. A build from your own brief takes 10 to 60 minutes.

Brief

Kenter shackle for 76 mm stud-link chain, carbon steel, painted signal yellow.

  1. Read
  2. Drafted
  3. Modelled
  4. Weighed
Top view
Front view
Section A-A
Part

Kenter shackle

for stud-link chain
Overall L × W × H

456 × 319.2 × 79.8 mm

volume 5,546.65 cm³
Mass

43.54 kg

estimate: volume × 7.85 g/cm³, carbon steel
Drawing

IC-0142 rev D

A3, third angle
Chain size d, mm
Finish

Signal yellow

Sheet

Parts placed together, each in its own colour, and checked for clashes.

Assemblies are built from the same parametric parts. Pull them apart to see how they go together. The clash check runs on every change and says exactly what touches what.

Parts list

Assembly mass83.60 kgestimates: volume × density for each part

Clash check

No clashes

  • 3 parts, 3 pairs checked
  • Deck plate to shackle104.0 mm clear

It reads the enquiry, and shows where every value came from.

Paste an email or drop in a PDF. The brief comes out structured, each value tied to the line it came from. Anything the client did not say is asked for, never guessed.

Jonah Petrie <j.petrie@kestrelbay.example>

Lifting points for the MV Corran Light refit

To: enquiries · Wed 14 Oct, 09:12 · Demo enquiry

  1. Hi,
  2. We are refitting the aft deck on MV Corran Light and need four new lifting points.
  3. Each one is a pad eye on a deck doubler, taking a 36 mm bow shackle.
  4. The deck plating is 25 mm, so please match the doubler to that.
  5. Pad eyes in S355, the doublers in 316 stainless.
  6. Could you send GA drawings and a mass for each assembly?
  7. Delivery to Aberdeen by week 48 if possible.
  8. Thanks, Jonah

Brief

8 values found, 3 questions

Item
Lifting point: pad eye on a deck doubler, with shackle
Quantity
4
Shackle
Bow shackle, 36 mm
Doubler thickness
25 mm, to match the deck
Pad eye material
S355
Doubler material
SS316
Deliverables
GA drawing and mass, per assembly
Delivery
Aberdeen, week 48
Safe working load
Not statedAsked: what SWL should each lifting point be rated for?
Lift direction
Not statedAsked: vertical only, or up to what angle from vertical?
Certification
Not statedAsked: which class society, if any, should approve them?

The three questions go into a reply draft for Jonah. Nothing is sent until you send it.

One project: every job, every approval, and who it is waiting for.

Jobs, drawings and documents sit together. Changes come to you as cards with the old value and the new one, and the register keeps every revision and its status.

Corran Light aft deck refitKestrel Bay Workboats · demo project · due week 48

  • 2 with you
  • 2 with the client
  • 1 with the checker
  • 1 with the inspector

Jobs

  1. J-01Lifting points ×4assembly · CL-DWG-101Waiting: SWL from client
  2. J-02Pad eye 36 mmpart · CL-DWG-102Approved
  3. J-03Deck doubler 25 mmpart · CL-DWG-103In check
  4. J-04Mooring connection 76 mmassembly · CL-DWG-104Issued
  5. J-05Strength calculationdocument · CL-CAL-201Waiting: SWL from client
  6. J-06Inspection and test plandocument · CL-ITP-301Draft

Approvals for you 2

CL-DWG-101 Lifting point GA

Old
Shackle at z +130 mm
New
Shackle at z +140 mm

Clash check: rev B put the shackle pin 17.40 cm³ into the pad eye. Rev C clears it.

CL-DWG-103 Deck doubler 25 mm

Old
S355
New
SS316

From the client's email, line 5: “the doublers in 316 stainless”.

Document register

DocumentTitleRevStatusWith
CL-DWG-101Lifting point GACFor approvalYou
CL-DWG-102Pad eye 36 mmBApprovedNone
CL-DWG-103Deck doubler 25 mmBIn checkDev Raman
CL-DWG-104Mooring connection 76 mmAIssuedNone
CL-CAL-201Pad eye strength calculationANeeds SWLClient
CL-ITP-301Inspection and test planADraftCallum Tait
CL-TRN-004Transmittal 004–Sent 21 OctClient

Taken on the phone. Filed in the right place.

Inspectors photograph the work on site. Each photo lands in the inspection record under the right item, step and date, with no renaming and no sorting at the end of the day.

Corran LightPE-02

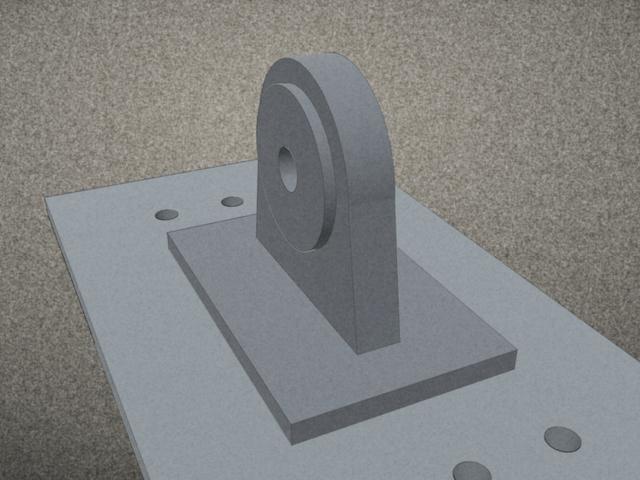

Demo photo: pad eye PE-02 on its deck doubler, after welding.

Filed

PE-02 · Weld visual · 23 Oct

Phone screen of the inspection app: a photo of pad eye PE-02 filed under Weld visual on 23 October.
  1. Taken. The inspector photographs pad eye PE-02 after welding.
  2. Read. The item tag, the step and the date are read from the photo and the plan.
  3. Filed. It lands in the record and the log notes it. Nobody renames a file.

Inspection record

Lifting points, CL-ITP-301 · demo images

ItemFit-upWeld visualMPILoad testFinal
PE-01
PE-02
PE-03
PE-04

Empty cells are steps not reached yet. They stay empty until a photo or a result arrives.

Logs that keep themselves.

Every revision, approval, photo and transmittal writes its own entry as the work happens. What you did on this page lands here too.

Activity

    Revisions

      Transmittals

        Try it live on the demo account.

        Describe a part of your own, or open the demo project and click through it. Everything in the demo is fictional data.

        Try it live: describe a part Open the demo project
