Nylon · Polyester · Polypropylene Mooring Series
The conventional mooring workhorses: high-tenacity polyamide, polyester and polypropylene lines in 3-, 8-, 12- and 24-strand and double-braid constructions, plus DURA-AR® PLUS, the aramid-core rope for extreme heat.
Representative properties across the DURA® series. Each line is detailed with full performance data below.
| Fibres | PA · PES · PP · Aramid |
| Constructions | 3 / 8 / 12 / 24-strand, double braid |
| Elongation | 12–35% (by fibre) |
| Melting point | 165–500 °C |
| Wet/dry strength | 90–100% |
| Compliance | ISO 2307 · OCIMF MEG4 |

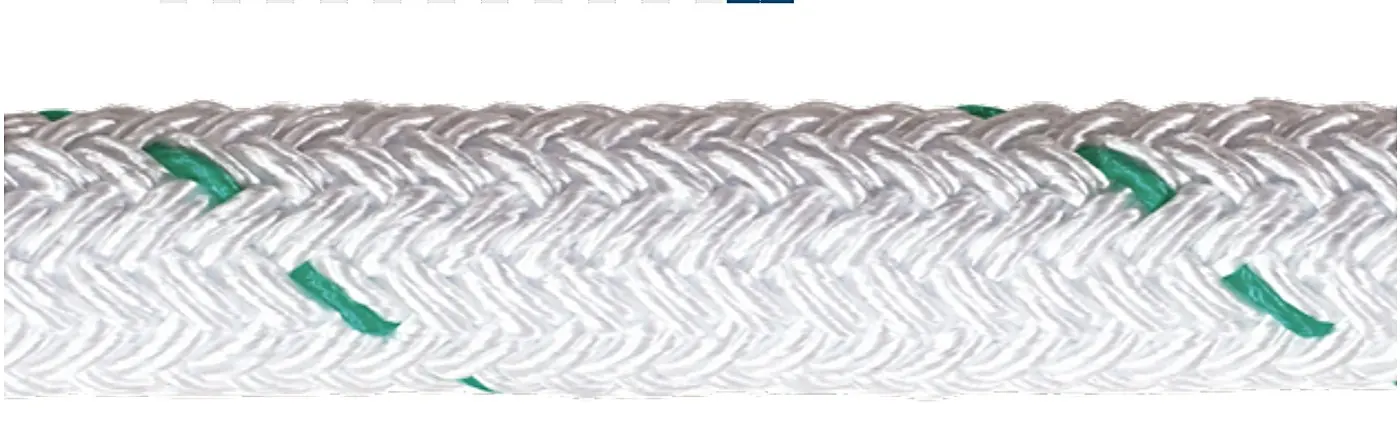

Non-rotative, torque-free double braid in high-tenacity polyamide, will not kink; the round, firm structure grips well. Very flexible with high strength and excellent wear resistance, and the shock absorption nylon is known for.
| Fibre | High-tenacity Polyamide |
| Specific gravity | 1.14 |
| Melting point | 215 °C |
| Breaking elongation | 30–35% |
| Water absorption | 4% |
| Wet/dry strength | Dry > wet |
DURA-PA® Double Braid, by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL ton | MBL kN | LDBF ton | LDBF kN |
|---|---|---|---|---|---|---|---|---|
| 22 | 7/8 | 2-3/4 | 30.1 | 66.2 | 11.1 | 109 | 10.0 | 98 |
| 24 | 1 | 3 | 35.8 | 78.8 | 13.3 | 130 | 11.9 | 117 |
| 26 | 1-1/16 | 3-1/4 | 42.0 | 92.4 | 15.5 | 152 | 14.0 | 137 |
| 28 | 1-1/8 | 3-1/2 | 48.8 | 107.4 | 18.0 | 176 | 16.2 | 158 |
| 30 | 1-1/4 | 3-3/4 | 56.0 | 123.2 | 20.7 | 203 | 18.6 | 183 |
| 32 | 1-5/16 | 4 | 63.7 | 140.1 | 23.5 | 230 | 21.1 | 207 |
| 36 | 1-1/2 | 4-1/2 | 80.6 | 177.3 | 29.7 | 291 | 26.7 | 262 |
| 40 | 1-5/8 | 5 | 99.5 | 218.9 | 36.5 | 358 | 32.9 | 322 |
| 44 | 1-3/4 | 5-1/2 | 120.0 | 264.0 | 44.2 | 433 | 39.8 | 390 |
| 48 | 2 | 6 | 143.0 | 314.6 | 52.6 | 515 | 47.3 | 464 |
| 52 | 2-1/8 | 6-1/2 | 168.0 | 369.6 | 61.5 | 603 | 55.4 | 543 |
| 56 | 2-1/4 | 7 | 195.0 | 429.0 | 71.2 | 698 | 64.1 | 628 |
| 60 | 2-1/2 | 7-1/2 | 224.0 | 492.8 | 81.6 | 800 | 73.5 | 720 |
| 64 | 2-5/8 | 8 | 255.0 | 561.0 | 92.9 | 910 | 83.6 | 819 |
| 72 | 3 | 9 | 322.0 | 708.4 | 117.9 | 1155 | 106.1 | 1040 |
| 80 | 3-1/4 | 10 | 398.0 | 875.6 | 144.7 | 1418 | 130.2 | 1276 |
| 88 | 3-5/8 | 11 | 482.0 | 1060.4 | 174.7 | 1712 | 157.2 | 1541 |
| 96 | 4 | 12 | 573.0 | 1260.6 | 207.9 | 2037 | 187.1 | 1833 |
| 104 | 4-1/4 | 13 | 673.0 | 1480.6 | 243.3 | 2384 | 218.9 | 2146 |
| 112 | 4-5/8 | 14 | 780.0 | 1716.0 | 281.8 | 2762 | 253.7 | 2486 |
| 120 | 5 | 15 | 896.0 | 1971.2 | 323.6 | 3171 | 291.2 | 2854 |
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.
Leader among popular fibres for weatherability: polyester exhibits excellent abrasion resistance and strength with good resistance to UV light and most common chemicals. Excellent gripping and torque-free construction.
| Fibre | High-tenacity Polyester |
| Specific gravity | 1.38–1.44 |
| Melting point | 250–260 °C |
| Breaking elongation | 20–30% |
| Water absorption | 0.4% |
| Wet/dry strength | Dry ≈ wet |
DURA-PES® Double Braid, by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL ton | MBL kN | LDBF ton | LDBF kN |
|---|---|---|---|---|---|---|---|---|
| 22 | 7/8 | 2-3/4 | 38.6 | 84.9 | 10.4 | 102 | 9.4 | 92 |
| 24 | 1 | 3 | 45.9 | 101.0 | 12.3 | 121 | 11.1 | 109 |
| 26 | 1-1/16 | 3-1/4 | 53.9 | 118.6 | 14.4 | 141 | 12.9 | 127 |
| 28 | 1-1/8 | 3-1/2 | 62.5 | 137.5 | 16.6 | 163 | 15.0 | 147 |
| 30 | 1-1/4 | 3-3/4 | 71.7 | 157.7 | 19.0 | 186 | 17.1 | 167 |
| 32 | 1-5/16 | 4 | 81.6 | 179.5 | 21.4 | 210 | 19.3 | 189 |
| 36 | 1-1/2 | 4-1/2 | 103.0 | 226.6 | 26.9 | 264 | 24.2 | 238 |
| 40 | 1-5/8 | 5 | 128.0 | 281.6 | 33.1 | 324 | 29.8 | 292 |
| 44 | 1-3/4 | 5-1/2 | 154.0 | 338.8 | 39.7 | 389 | 35.7 | 350 |
| 48 | 2 | 6 | 184.0 | 404.8 | 46.9 | 460 | 42.2 | 414 |
| 52 | 2-1/8 | 6-1/2 | 216.0 | 475.2 | 54.8 | 537 | 49.3 | 483 |
| 56 | 2-1/4 | 7 | 250.0 | 550.0 | 63.1 | 618 | 56.8 | 556 |
| 60 | 2-1/2 | 7-1/2 | 287.0 | 631.4 | 72.1 | 707 | 64.9 | 636 |
| 64 | 2-5/8 | 8 | 326.0 | 717.2 | 81.6 | 800 | 73.5 | 720 |
| 72 | 3 | 9 | 413.0 | 908.6 | 102.0 | 1000 | 91.8 | 900 |
| 80 | 3-1/4 | 10 | 510.0 | 1122.0 | 125.5 | 1230 | 113.0 | 1107 |
| 88 | 3-5/8 | 11 | 617.0 | 1357.4 | 151.0 | 1480 | 135.9 | 1332 |
| 96 | 4 | 12 | 735.0 | 1617.0 | 178.6 | 1750 | 160.7 | 1575 |
| 104 | 4-1/4 | 13 | 862.0 | 1896.4 | 208.2 | 2040 | 187.3 | 1836 |
| 112 | 4-5/8 | 14 | 1000.0 | 2200.0 | 239.8 | 2350 | 215.8 | 2115 |
| 120 | 5 | 15 | 1150.0 | 2530.0 | 274.5 | 2690 | 247.0 | 2421 |
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.
Made of polyamide fibre with good shock-absorption capacity, widely used in ship towing and general mooring duty.
| Fibre | High-tenacity Polyamide |
| Specific gravity | 1.14 |
| Melting point | 215 °C |
| Breaking elongation | 15–28% |
| Construction | 3 / 8 / 12-strand |
DURA-PA® 3-strand, by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL ton | MBL kN | LDBF ton | LDBF kN |
|---|---|---|---|---|---|---|---|---|
| 12 | 1/2 | 1-1/2 | 8.9 | 19.6 | 3.7 | 36 | 3.3 | 32 |
| 14 | 9/16 | 1-3/4 | 12.1 | 26.6 | 4.9 | 48 | 4.4 | 43 |
| 16 | 5/8 | 2 | 15.8 | 34.8 | 6.1 | 60 | 5.5 | 54 |
| 18 | 3/4 | 2-1/4 | 20.0 | 44.0 | 7.7 | 76 | 6.9 | 68 |
| 22 | 7/8 | 2-3/4 | 30.0 | 66.0 | 11.6 | 114 | 10.5 | 103 |
| 24 | 1 | 3 | 35.5 | 78.1 | 13.7 | 134 | 12.3 | 121 |
| 26 | 1-1/16 | 3-1/4 | 41.7 | 91.7 | 15.3 | 150 | 13.8 | 135 |
| 28 | 1-1/8 | 3-1/2 | 48.4 | 106.5 | 18.4 | 180 | 16.5 | 162 |
| 30 | 1-1/4 | 3-3/4 | 55.5 | 122.1 | 20.8 | 204 | 18.7 | 184 |
| 32 | 1-5/16 | 4 | 63.2 | 139.0 | 23.3 | 228 | 20.9 | 205 |
| 36 | 1-1/2 | 4-1/2 | 80.0 | 176.0 | 28.9 | 283 | 26.0 | 255 |
| 40 | 1-5/8 | 5 | 98.7 | 217.1 | 36.7 | 360 | 33.1 | 324 |
| 44 | 1-3/4 | 5-1/2 | 119.0 | 261.8 | 43.5 | 426 | 39.1 | 383 |
| 48 | 2 | 6 | 142.0 | 312.4 | 49.0 | 480 | 44.1 | 432 |
| 52 | 2-1/8 | 6-1/2 | 167.0 | 367.4 | 58.2 | 570 | 52.3 | 513 |
| 56 | 2-1/4 | 7 | 193.0 | 424.6 | 68.6 | 672 | 61.7 | 605 |
| 60 | 2-1/2 | 7-1/2 | 221.0 | 486.2 | 77.1 | 756 | 69.4 | 680 |
| 64 | 2-5/8 | 8 | 253.0 | 556.6 | 86.9 | 852 | 78.2 | 767 |
| 68 | 2-3/4 | 8-1/2 | 290.0 | 638.0 | 99.2 | 972 | 89.3 | 875 |
| 72 | 3 | 9 | 320.0 | 704.0 | 110.2 | 1080 | 99.2 | 972 |
| 80 | 3-1/4 | 10 | 395.0 | 869.0 | 129.8 | 1272 | 116.8 | 1145 |
| 88 | 3-5/8 | 11 | 478.0 | 1051.6 | 161.6 | 1584 | 145.5 | 1426 |
| 96 | 4 | 12 | 569.0 | 1251.8 | 183.7 | 1800 | 165.3 | 1620 |
| 100 | 4-1/8 | 12-1/12 | 616.0 | 1355.2 | 204.1 | 2000 | 183.7 | 1800 |
DURA-PA® 8-strand & 12-strand, by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | 8-str MBL t | 8-str MBL kN | 8-str LDBF t | 8-str LDBF kN | 12-str MBL t | 12-str MBL kN | 12-str LDBF t | 12-str LDBF kN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 1 | 3 | 36.0 | 79.2 | 13.7 | 134 | 12.4 | 121 | 14.4 | 142 | 13.0 | 127 |
| 28 | 1-1/8 | 3-1/2 | 49.0 | 107.8 | 18.4 | 180 | 16.6 | 162 | 19.6 | 192 | 17.6 | 173 |
| 30 | 1-1/4 | 3-3/4 | 56.0 | 123.2 | 20.8 | 204 | 18.7 | 184 | 22.1 | 216 | 19.8 | 194 |
| 32 | 1-5/16 | 4 | 64.0 | 140.8 | 24.5 | 240 | 22.1 | 216 | 25.9 | 254 | 23.4 | 229 |
| 36 | 1-1/2 | 4-1/2 | 81.0 | 178.2 | 30.6 | 300 | 27.6 | 270 | 32.4 | 318 | 29.3 | 287 |
| 40 | 1-5/8 | 5 | 100.0 | 220.0 | 36.7 | 360 | 33.1 | 324 | 38.5 | 378 | 34.8 | 341 |
| 44 | 1-3/4 | 5-1/2 | 121.0 | 266.2 | 43.4 | 426 | 39.2 | 384 | 46.0 | 450 | 41.4 | 406 |
| 48 | 2 | 6 | 144.0 | 316.8 | 52.1 | 510 | 46.9 | 460 | 55.1 | 540 | 49.6 | 486 |
| 52 | 2-1/8 | 6-1/2 | 170.0 | 374.0 | 61.2 | 600 | 55.1 | 540 | 64.9 | 636 | 58.4 | 572 |
| 56 | 2-1/4 | 7 | 197.0 | 433.4 | 68.5 | 672 | 61.7 | 605 | 73.4 | 720 | 66.1 | 648 |
| 60 | 2-1/2 | 7-1/2 | 226.0 | 497.2 | 77.2 | 756 | 69.5 | 680 | 82.1 | 804 | 73.8 | 724 |
| 64 | 2-5/8 | 8 | 257.0 | 565.4 | 86.9 | 852 | 78.2 | 767 | 91.8 | 900 | 82.7 | 810 |
| 72 | 3 | 9 | 325.0 | 715.0 | 110.2 | 1080 | 99.2 | 972 | 116.3 | 1140 | 104.6 | 1026 |
| 80 | 3-1/4 | 10 | 401.0 | 882.2 | 137.2 | 1344 | 123.5 | 1210 | 144.5 | 1416 | 130.1 | 1274 |
| 88 | 3-5/8 | 11 | 486.0 | 1069.2 | 161.6 | 1584 | 145.4 | 1426 | 171.5 | 1680 | 154.3 | 1512 |
| 96 | 4 | 12 | 578.0 | 1271.6 | 196.0 | 1920 | 176.3 | 1728 | 208.2 | 2040 | 187.3 | 1836 |
| 104 | 4-1/4 | 13 | 678.0 | 1491.6 | 220.4 | 2160 | 198.4 | 1944 | 232.7 | 2280 | 209.4 | 2052 |
| 112 | 4-5/8 | 14 | 787.0 | 1731.4 | 259.6 | 2544 | 233.6 | 2290 | 274.3 | 2688 | 246.8 | 2419 |
| 120 | 5 | 15 | 903.0 | 1986.6 | 289.0 | 2832 | 260.0 | 2549 | 306.1 | 3000 | 275.5 | 2700 |
| 128 | 5-1/4 | 16 | 1010.0 | 2222.0 | 324.5 | 3180 | 292.1 | 2862 | 342.8 | 3360 | 308.5 | 3024 |
| 136 | 5-5/8 | 17 | 1160.0 | 2552.0 | 367.3 | 3600 | 330.6 | 3240 | 385.7 | 3780 | 347.2 | 3402 |
| 144 | 6 | 18 | 1300.0 | 2860.0 | 410.2 | 4020 | 369.2 | 3618 | 434.6 | 4260 | 391.2 | 3834 |
| 160 | 6-5/8 | 20 | 1610.0 | 3542.0 | 520.4 | 5100 | 468.4 | 4590 | 551.0 | 5400 | 496.0 | 4860 |
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.
High-tenacity polyester fibre gives very good break strength and the finest durability, widely used in the mooring industry.
| Fibre | High-tenacity Polyester |
| Specific gravity | 1.38–1.44 |
| Melting point | 250–260 °C |
| Breaking elongation | 12–21% |
| Construction | 3 / 8 / 12-strand |
DURA-PES® 3-strand, by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL ton | MBL kN | LDBF ton | LDBF kN |
|---|---|---|---|---|---|---|---|---|
| 12 | 1/2 | 1-1/2 | 10.9 | 24.0 | 2.7 | 27 | 2.5 | 24 |
| 14 | 9/16 | 1-3/4 | 14.9 | 32.8 | 3.7 | 36 | 3.3 | 32 |
| 16 | 5/8 | 2 | 19.4 | 42.7 | 4.9 | 48 | 4.4 | 43 |
| 18 | 3/4 | 2-1/4 | 24.6 | 54.1 | 6.1 | 60 | 5.5 | 54 |
| 22 | 7/8 | 2-3/4 | 36.7 | 80.7 | 8.7 | 85 | 7.8 | 77 |
| 24 | 1 | 3 | 43.7 | 96.1 | 10.4 | 102 | 9.4 | 92 |
| 26 | 1-1/16 | 3-1/4 | 51.2 | 112.6 | 12.2 | 120 | 11.0 | 108 |
| 28 | 1-1/8 | 3-1/2 | 59.4 | 130.7 | 14.4 | 142 | 13.0 | 127 |
| 30 | 1-1/4 | 3-3/4 | 68.2 | 150.0 | 16.2 | 158 | 14.5 | 143 |
| 32 | 1-5/16 | 4 | 77.6 | 170.7 | 18.4 | 180 | 16.5 | 162 |
| 36 | 1-1/2 | 4-1/2 | 98.2 | 216.0 | 23.3 | 228 | 20.9 | 205 |
| 40 | 1-5/8 | 5 | 121.0 | 266.2 | 28.9 | 283 | 26.0 | 255 |
| 44 | 1-3/4 | 5-1/2 | 147.0 | 323.4 | 34.3 | 336 | 30.9 | 302 |
| 48 | 2 | 6 | 175.0 | 385.0 | 41.0 | 402 | 36.9 | 362 |
| 52 | 2-1/8 | 6-1/2 | 205.0 | 451.0 | 45.9 | 450 | 41.3 | 405 |
| 56 | 2-1/4 | 7 | 238.0 | 523.6 | 52.0 | 510 | 46.8 | 459 |
| 60 | 2-1/2 | 7-1/2 | 273.0 | 600.6 | 61.2 | 600 | 55.1 | 540 |
| 64 | 2-5/8 | 8 | 310.0 | 682.0 | 68.6 | 672 | 61.7 | 605 |
| 68 | 2-3/4 | 8-1/2 | 351.0 | 772.2 | 85.5 | 838 | 76.9 | 754 |
| 72 | 3 | 9 | 393.0 | 864.6 | 86.9 | 852 | 78.2 | 767 |
| 80 | 3-1/4 | 10 | 485.0 | 1067.0 | 104.1 | 1020 | 93.7 | 918 |
| 88 | 3-5/8 | 11 | 587.0 | 1291.4 | 129.8 | 1272 | 116.8 | 1145 |
| 96 | 4 | 12 | 699.0 | 1537.8 | 153.1 | 1500 | 137.8 | 1350 |
| 100 | 4-1/8 | 12-1/12 | 760.0 | 1672.0 | 163.2 | 1600 | 146.9 | 1440 |
DURA-PES® 8-strand & 12-strand, by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | 8-str MBL t | 8-str MBL kN | 8-str LDBF t | 8-str LDBF kN | 12-str MBL t | 12-str MBL kN | 12-str LDBF t | 12-str LDBF kN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 1 | 3 | 43.7 | 96.1 | 11.0 | 108 | 9.9 | 97 | 11.6 | 114 | 10.5 | 103 |
| 28 | 1-1/8 | 3-1/2 | 59.5 | 130.9 | 14.4 | 142 | 13.0 | 127 | 15.3 | 150 | 13.8 | 135 |
| 30 | 1-1/4 | 3-3/4 | 68.3 | 150.3 | 16.2 | 158 | 14.5 | 143 | 17.1 | 168 | 15.4 | 151 |
| 32 | 1-5/16 | 4 | 77.7 | 170.9 | 18.4 | 180 | 16.5 | 162 | 19.6 | 192 | 17.6 | 173 |
| 36 | 1-1/2 | 4-1/2 | 98.4 | 216.5 | 23.3 | 228 | 20.9 | 205 | 24.5 | 240 | 22.0 | 216 |
| 40 | 1-5/8 | 5 | 121.0 | 266.2 | 28.9 | 283 | 26.0 | 255 | 30.6 | 300 | 27.6 | 270 |
| 44 | 1-3/4 | 5-1/2 | 147.0 | 323.4 | 34.3 | 336 | 30.9 | 302 | 36.7 | 360 | 33.1 | 324 |
| 48 | 2 | 6 | 175.0 | 385.0 | 41.0 | 402 | 36.9 | 362 | 43.5 | 426 | 39.1 | 383 |
| 52 | 2-1/8 | 6-1/2 | 205.0 | 451.0 | 49.0 | 480 | 44.1 | 432 | 52.0 | 510 | 46.8 | 459 |
| 56 | 2-1/4 | 7 | 238.0 | 523.6 | 55.1 | 540 | 49.6 | 486 | 58.2 | 570 | 52.3 | 513 |
| 60 | 2-1/2 | 7-1/2 | 273.0 | 600.6 | 61.2 | 600 | 55.1 | 540 | 64.9 | 636 | 58.4 | 572 |
| 64 | 2-5/8 | 8 | 311.0 | 684.2 | 68.6 | 672 | 61.7 | 605 | 73.5 | 720 | 66.1 | 648 |
| 72 | 3 | 9 | 393.0 | 864.6 | 86.9 | 852 | 78.2 | 767 | 91.8 | 900 | 82.7 | 810 |
| 80 | 3-1/4 | 10 | 486.0 | 1069.2 | 110.2 | 1080 | 99.2 | 972 | 116.3 | 1140 | 104.7 | 1026 |
| 88 | 3-5/8 | 11 | 588.0 | 1293.6 | 129.8 | 1272 | 116.8 | 1145 | 137.1 | 1344 | 123.4 | 1210 |
| 96 | 4 | 12 | 699.0 | 1537.8 | 153.1 | 1500 | 137.8 | 1350 | 161.6 | 1584 | 145.5 | 1426 |
| 104 | 4-1/4 | 13 | 821.0 | 1806.2 | 183.7 | 1800 | 165.3 | 1620 | 195.9 | 1920 | 176.3 | 1728 |
| 112 | 4-5/8 | 14 | 952.0 | 2094.4 | 208.2 | 2040 | 187.3 | 1836 | 220.4 | 2160 | 198.4 | 1944 |
| 120 | 5 | 15 | 1090.0 | 2398.0 | 232.7 | 2280 | 209.4 | 2052 | 244.9 | 2400 | 220.4 | 2160 |
| 128 | 5-1/4 | 16 | 1240.0 | 2728.0 | 274.3 | 2688 | 246.9 | 2419 | 289.0 | 2832 | 260.1 | 2549 |
| 136 | 5-5/8 | 17 | 1400.0 | 3080.0 | 306.1 | 3000 | 275.5 | 2700 | 324.5 | 3180 | 292.0 | 2862 |
| 144 | 6 | 18 | 1570.0 | 3454.0 | 342.9 | 3360 | 308.6 | 3024 | 367.3 | 3600 | 330.6 | 3240 |
| 160 | 6-5/8 | 20 | 1940.0 | 4268.0 | 410.2 | 4020 | 369.2 | 3618 | 434.7 | 4260 | 391.2 | 3834 |
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.
Light-weight mooring line, very easy to handle, keeps the same strength in wet or dry environment.
| Fibre | High-tenacity Polypropylene |
| Specific gravity | 0.91–0.93, floats |
| Melting point | 165 °C |
| Breaking elongation | 12–20% |
| Construction | 3 / 8 / 12-strand |
DURA-PP® 3-strand, by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL ton | MBL kN | LDBF ton | LDBF kN |
|---|---|---|---|---|---|---|---|---|
| 12 | 1/2 | 1-1/2 | 6.5 | 14.3 | 2.2 | 21 | 1.9 | 19 |
| 14 | 9/16 | 1-3/4 | 8.8 | 19.4 | 2.9 | 28 | 2.6 | 25 |
| 16 | 5/8 | 2 | 11.6 | 25.5 | 3.8 | 38 | 3.4 | 34 |
| 18 | 3/4 | 2-1/4 | 14.6 | 32.1 | 4.6 | 45 | 4.1 | 41 |
| 22 | 7/8 | 2-3/4 | 21.9 | 48.2 | 6.8 | 67 | 6.2 | 60 |
| 24 | 1 | 3 | 26.0 | 57.2 | 8.2 | 80 | 7.3 | 72 |
| 26 | 1-1/16 | 3-1/4 | 30.6 | 67.3 | 9.2 | 90 | 8.3 | 81 |
| 28 | 1-1/8 | 3-1/2 | 35.4 | 77.9 | 10.8 | 106 | 9.7 | 95 |
| 30 | 1-1/4 | 3-3/4 | 40.7 | 89.5 | 12.0 | 118 | 10.8 | 106 |
| 32 | 1-5/16 | 4 | 46.3 | 101.9 | 13.5 | 132 | 12.1 | 119 |
| 36 | 1-1/2 | 4-1/2 | 58.6 | 128.9 | 17.3 | 170 | 15.6 | 153 |
| 40 | 1-5/8 | 5 | 72.3 | 159.1 | 20.4 | 200 | 18.4 | 180 |
| 44 | 1-3/4 | 5-1/2 | 87.5 | 192.5 | 25.5 | 250 | 23.0 | 225 |
| 48 | 2 | 6 | 104.0 | 228.8 | 28.6 | 280 | 25.7 | 252 |
| 52 | 2-1/8 | 6-1/2 | 122.0 | 268.4 | 34.2 | 335 | 30.8 | 302 |
| 56 | 2-1/4 | 7 | 142.0 | 312.4 | 38.3 | 375 | 34.4 | 338 |
| 60 | 2-1/2 | 7-1/2 | 163.0 | 358.6 | 43.4 | 425 | 39.0 | 383 |
| 64 | 2-5/8 | 8 | 185.0 | 407.0 | 51.0 | 500 | 45.9 | 450 |
| 68 | 2-3/4 | 8-1/2 | 210.0 | 462.0 | 56.1 | 550 | 50.5 | 495 |
| 72 | 3 | 9 | 234.0 | 514.8 | 61.2 | 600 | 55.1 | 540 |
| 80 | 3-1/4 | 10 | 289.0 | 635.8 | 76.5 | 750 | 68.9 | 675 |
| 88 | 3-5/8 | 11 | 350.0 | 770.0 | 91.8 | 900 | 82.7 | 810 |
| 96 | 4 | 12 | 417.0 | 917.4 | 108.2 | 1060 | 97.3 | 954 |
| 100 | 4-1/8 | 12-1/12 | 453.0 | 996.6 | 117.9 | 1155 | 106.1 | 1040 |
DURA-PP® 8-strand & 12-strand, by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | 8-str MBL t | 8-str MBL kN | 8-str LDBF t | 8-str LDBF kN | 12-str MBL t | 12-str MBL kN | 12-str LDBF t | 12-str LDBF kN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 1 | 3 | 26.0 | 57.2 | 7.7 | 75 | 6.9 | 68 | 8.2 | 80 | 7.3 | 72 |
| 28 | 1-1/8 | 3-1/2 | 35.4 | 77.9 | 10.2 | 100 | 9.2 | 90 | 10.8 | 106 | 9.7 | 95 |
| 30 | 1-1/4 | 3-3/4 | 40.7 | 89.5 | 11.4 | 112 | 10.3 | 101 | 12.0 | 118 | 10.8 | 106 |
| 32 | 1-5/16 | 4 | 46.3 | 101.9 | 13.5 | 132 | 12.1 | 119 | 14.3 | 140 | 12.9 | 126 |
| 36 | 1-1/2 | 4-1/2 | 58.6 | 128.9 | 16.3 | 160 | 14.7 | 144 | 17.3 | 170 | 15.6 | 153 |
| 40 | 1-5/8 | 5 | 72.3 | 159.1 | 20.4 | 200 | 18.4 | 180 | 21.4 | 210 | 19.3 | 189 |
| 44 | 1-3/4 | 5-1/2 | 87.5 | 192.5 | 24.1 | 236 | 21.6 | 212 | 25.5 | 250 | 23.0 | 225 |
| 48 | 2 | 6 | 104.0 | 228.8 | 28.6 | 280 | 25.7 | 252 | 30.6 | 300 | 27.6 | 270 |
| 52 | 2-1/8 | 6-1/2 | 122.0 | 268.4 | 34.2 | 335 | 30.8 | 302 | 36.2 | 355 | 32.7 | 320 |
| 56 | 2-1/4 | 7 | 142.0 | 312.4 | 38.3 | 375 | 34.5 | 338 | 40.8 | 400 | 36.7 | 360 |
| 60 | 2-1/2 | 7-1/2 | 163.0 | 358.6 | 43.4 | 425 | 39.1 | 383 | 45.9 | 450 | 41.3 | 405 |
| 64 | 2-5/8 | 8 | 185.0 | 407.0 | 48.5 | 475 | 43.7 | 428 | 51.0 | 500 | 45.9 | 450 |
| 72 | 3 | 9 | 234.0 | 514.8 | 61.2 | 600 | 55.1 | 540 | 64.3 | 630 | 57.9 | 567 |
| 80 | 3-1/4 | 10 | 289.0 | 635.8 | 76.5 | 750 | 68.9 | 675 | 81.6 | 800 | 73.5 | 720 |
| 88 | 3-5/8 | 11 | 350.0 | 770.0 | 91.8 | 900 | 82.7 | 810 | 96.9 | 950 | 87.2 | 855 |
| 96 | 4 | 12 | 417.0 | 917.4 | 108.2 | 1060 | 97.3 | 954 | 114.3 | 1120 | 102.9 | 1008 |
| 104 | 4-1/4 | 13 | 489.0 | 1075.8 | 127.6 | 1250 | 114.8 | 1125 | 134.7 | 1320 | 121.2 | 1188 |
| 112 | 4-5/8 | 14 | 567.0 | 1247.4 | 142.9 | 1400 | 128.6 | 1260 | 153.1 | 1500 | 137.8 | 1350 |
| 120 | 5.0 | 15 | 651.0 | 1432.2 | 163.3 | 1600 | 146.9 | 1440 | 173.5 | 1700 | 156.1 | 1530 |
| 128 | 5-1/4 | 16 | 741.0 | 1630.2 | 193.9 | 1900 | 174.5 | 1710 | 204.1 | 2000 | 183.7 | 1800 |
| 136 | 5-5/8 | 17 | 836.0 | 1839.2 | 216.3 | 2120 | 194.7 | 1908 | 228.6 | 2240 | 205.7 | 2016 |
| 144 | 6 | 18 | 937.0 | 2061.4 | 240.8 | 2360 | 216.7 | 2124 | 255.1 | 2500 | 229.6 | 2250 |
| 160 | 6-5/8 | 20 | 1160.0 | 2552.0 | 285.7 | 2800 | 257.1 | 2520 | 306.1 | 3000 | 275.5 | 2700 |
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.
24-strand braided rope: each of the 12 strands is itself a double braid. The additional strand layers provide greater flexibility, easier handling and more even load distribution, smoother handling with reduced risk of kinking or twisting.
| Versions | DURA-PA 24 · DURA-PES 24 · TOUGH-MIX 24 · TOUGH-PLUS 24 |
| Construction | 24-strand (12×2) |
| Benefit | Flexible, kink-resistant handling |
DURA-PA 24 & DURA-PES 24, by diameter (columns: PA 24 / PES 24)
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL t | MBL kN | LDBF t | LDBF kN | kg/100m | kg/220m | MBL t | MBL kN | LDBF t | LDBF kN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 36 | 1-1/2 | 4-1/2 | 81.0 | 178.2 | 32.4 | 318 | 29.3 | 287 | 98.4 | 216.5 | 24.5 | 240 | 22.0 | 216 |
| 40 | 1-5/8 | 5 | 100.0 | 220.0 | 38.5 | 378 | 34.8 | 341 | 121.0 | 266.2 | 30.6 | 300 | 27.6 | 270 |
| 44 | 1-3/4 | 5-1/2 | 121.0 | 266.2 | 46.0 | 450 | 41.4 | 406 | 147.0 | 323.4 | 36.7 | 360 | 33.1 | 324 |
| 48 | 2 | 6 | 144.0 | 316.8 | 55.1 | 540 | 49.6 | 486 | 175.0 | 385.0 | 43.5 | 426 | 39.1 | 383 |
| 52 | 2-1/8 | 6-1/2 | 170.0 | 374.0 | 64.9 | 636 | 58.4 | 572 | 205.0 | 451.0 | 52.0 | 510 | 46.8 | 459 |
| 56 | 2-1/4 | 7 | 197.0 | 433.4 | 73.4 | 720 | 66.1 | 648 | 238.0 | 523.6 | 58.2 | 570 | 52.3 | 513 |
| 60 | 2-1/2 | 7-1/2 | 226.0 | 497.2 | 82.1 | 804 | 73.8 | 724 | 273.0 | 600.6 | 64.9 | 636 | 58.4 | 572 |
| 64 | 2-5/8 | 8 | 257.0 | 565.4 | 91.8 | 900 | 82.7 | 810 | 311.0 | 684.2 | 73.5 | 720 | 66.1 | 648 |
| 72 | 3 | 9 | 325.0 | 715.0 | 116.3 | 1140 | 104.6 | 1026 | 393.0 | 864.6 | 91.8 | 900 | 82.7 | 810 |
| 80 | 3-1/4 | 10 | 401.0 | 882.2 | 144.5 | 1416 | 130.1 | 1274 | 486.0 | 1069.2 | 116.3 | 1140 | 104.7 | 1026 |
| 88 | 3-5/8 | 11 | 486.0 | 1069.2 | 171.5 | 1680 | 154.3 | 1512 | 588.0 | 1293.6 | 137.1 | 1344 | 123.4 | 1210 |
| 96 | 4 | 12 | 578.0 | 1271.6 | 208.2 | 2040 | 187.3 | 1836 | 699.0 | 1537.8 | 161.6 | 1584 | 145.5 | 1426 |
| 104 | 4-1/4 | 13 | 678.0 | 1491.6 | 232.7 | 2280 | 209.4 | 2052 | 821.0 | 1806.2 | 195.9 | 1920 | 176.3 | 1728 |
| 112 | 4-5/8 | 14 | 787.0 | 1731.4 | 274.3 | 2688 | 246.8 | 2419 | 952.0 | 2094.4 | 220.4 | 2160 | 198.4 | 1944 |
| 120 | 5 | 15 | 903.0 | 1986.6 | 306.1 | 3000 | 275.5 | 2700 | 1090.0 | 2398.0 | 244.9 | 2400 | 220.4 | 2160 |
TOUGH-MIX 24 & TOUGH-PLUS 24, by diameter (columns: MIX 24 / PLUS 24)
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL t | MBL kN | LDBF t | LDBF kN | kg/100m | kg/220m | MBL t | MBL kN | LDBF t | LDBF kN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 36 | 1-1/2 | 4-1/2 | 69.2 | 152.2 | 29.8 | 293 | 26.8 | 263 | 64.1 | 141.0 | 30.2 | 296 | 27.5 | 269 |
| 40 | 1-5/8 | 5 | 85.4 | 187.9 | 36.5 | 357 | 32.8 | 321 | 79.1 | 174.0 | 36.9 | 362 | 35.5 | 329 |
| 44 | 1-3/4 | 5-1/2 | 103.3 | 227.3 | 43.7 | 428 | 39.3 | 385 | 97.7 | 214.9 | 43.9 | 430 | 39.9 | 391 |
| 48 | 2 | 6 | 122.1 | 268.6 | 51.6 | 506 | 46.6 | 456 | 114.5 | 251.9 | 51.8 | 508 | 47.1 | 462 |
| 52 | 2-1/8 | 6-1/2 | 145.2 | 319.4 | 60.1 | 589 | 54.2 | 531 | 134 | 294.8 | 60.2 | 590 | 54.8 | 537 |
| 56 | 2-1/4 | 7 | 167.2 | 367.8 | 69.4 | 680 | 62.4 | 612 | 156 | 343.2 | 69.2 | 678 | 62.9 | 617 |
| 60 | 2-1/2 | 7-1/2 | 192.5 | 423.5 | 79.1 | 776 | 71.3 | 698 | 179 | 393.8 | 78.4 | 769 | 71.3 | 699 |
| 64 | 2-5/8 | 8 | 218.9 | 481.6 | 89.5 | 878 | 80.6 | 790 | 203.6 | 447.9 | 88.3 | 865 | 80.2 | 786 |
| 68 | 3-3/4 | 8-1/2 | 247.5 | 544.5 | 100.3 | 983 | 90.3 | 885 | 230 | 506.0 | 99.1 | 971 | 90.1 | 883 |
| 72 | 3 | 9 | 277.2 | 609.8 | 111.9 | 1097 | 100.8 | 988 | 258 | 567.6 | 110.3 | 1081 | 100.3 | 983 |
| 80 | 3-1/4 | 10 | 342.1 | 752.6 | 136.6 | 1339 | 123.0 | 1205 | 319 | 701.8 | 133.9 | 1312 | 121.7 | 1193 |
| 88 | 3-5/8 | 11 | 412.5 | 907.5 | 164.6 | 1613 | 147.6 | 1446 | 386 | 849.2 | 159.9 | 1567 | 145.4 | 1425 |
| 96 | 4 | 12 | 491.7 | 1081.7 | 194.4 | 1906 | 174.6 | 1711 | 459 | 1009.8 | 188.3 | 1845 | 171.2 | 1678 |
| 104 | 4-1/4 | 13 | 578.6 | 1272.9 | 225.7 | 2211 | 203.0 | 1989 | 536 | 1179.2 | 218.2 | 2138 | 198.3 | 1944 |
| 112 | 4-5/8 | 14 | 665.5 | 1464.1 | 261.1 | 2559 | 235.5 | 2308 | 623 | 1370.6 | 252.5 | 2474 | 229.5 | 2250 |
| 120 | 5 | 15 | 767.8 | 1689.2 | 298.0 | 2920 | 268.2 | 2629 | 718 | 1579.6 | 286.9 | 2812 | 260.8 | 2556 |
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.
High-performance rope for extreme high-temperature working conditions. Fatigue- and abrasion-resistant with the ability to absorb dynamic loads for long periods, and the polyester jacket can be repaired and replaced to offer longer service lifetime.
| Core | Aramid 12-strand |
| Jacket | Polyester braid (repairable) |
| Melting point | 500 °C / 260 °C |
| Specific gravity | 1.44 |
| Breaking elongation | < 3% |
| Water absorption | 4% |
DURA-AR® PLUS, by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL ton | MBL kN | LDBF ton | LDBF kN |
|---|---|---|---|---|---|---|---|---|
| 20 | 13/16 | 2-1/2 | 34.6 | 76.1 | 37.2 | 365 | 33.5 | 328 |
| 24 | 1 | 3 | 49.5 | 108.9 | 53.8 | 527 | 48.4 | 475 |
| 28 | 1-1/8 | 3-1/2 | 67.1 | 147.6 | 73.4 | 719 | 66.1 | 647 |
| 32 | 1-5/16 | 4 | 85.6 | 188.3 | 90.0 | 882 | 81.0 | 794 |
| 34 | 1-11/32 | 4-1/4 | 95.8 | 210.8 | 95.1 | 932 | 85.6 | 839 |
| 36 | 1-7/16 | 4-1/2 | 106.7 | 234.7 | 108.6 | 1064 | 98.7 | 967 |
| 38 | 1-1/2 | 4-3/4 | 116.9 | 257.2 | 121.0 | 1186 | 108.9 | 1067 |
| 40 | 1-5/8 | 5 | 126.8 | 279.0 | 135.5 | 1328 | 122.0 | 1195 |
| 44 | 1-3/4 | 5-1/2 | 162.2 | 356.8 | 161.4 | 1582 | 145.3 | 1424 |
| 48 | 2 | 6 | 189.4 | 416.7 | 185.3 | 1816 | 166.8 | 1634 |
| 52 | 2-1/8 | 6-1/2 | 215.0 | 473.0 | 213.3 | 2090 | 192.0 | 1881 |
| 56 | 2-1/4 | 7 | 252.9 | 556.4 | 245.8 | 2409 | 221.2 | 2168 |
| 60 | 2-1/2 | 7-1/2 | 277.1 | 609.6 | 262.4 | 2572 | 236.2 | 2314 |
| 64 | 2-5/8 | 8 | 307.4 | 676.3 | 291.0 | 2852 | 261.9 | 2567 |
| 72 | 3 | 9 | 378.6 | 832.9 | 374.9 | 3674 | 337.4 | 3307 |
| 80 | 3-1/4 | 10 | 476.6 | 1048.5 | 454.8 | 4457 | 409.3 | 4011 |
| 88 | 3-5/8 | 11 | 565.1 | 1243.2 | 553.9 | 5428 | 498.5 | 4885 |
| 96 | 4 | 12 | 689.1 | 1516.0 | 663.2 | 6499 | 596.9 | 5849 |
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.
Match the fibre to the duty: nylon for shock, polyester for UV and wet strength, polypropylene for economy, aramid for heat.
Maximum shock absorption for towing and mooring.
Excellent UV and chemical resistance, torque-free.
Polyamide shock absorption in three constructions.
Finest durability with very good break strength.
Easy handling, same strength wet or dry, floats.
Aramid core, repairable PES jacket, extreme heat duty.
Use the specification above directly in our calculators.
