UK Est. 2006 · Manufacturing partner since 1958 · OCIMF MEG4 · DNV · ABS · Lloyd's · BV · CCS
Advanced synthetic rope systems engineered for offshore mooring, maritime operations, heavy lifting, and emergency applications. Every product meets the most rigorous international classification standards.

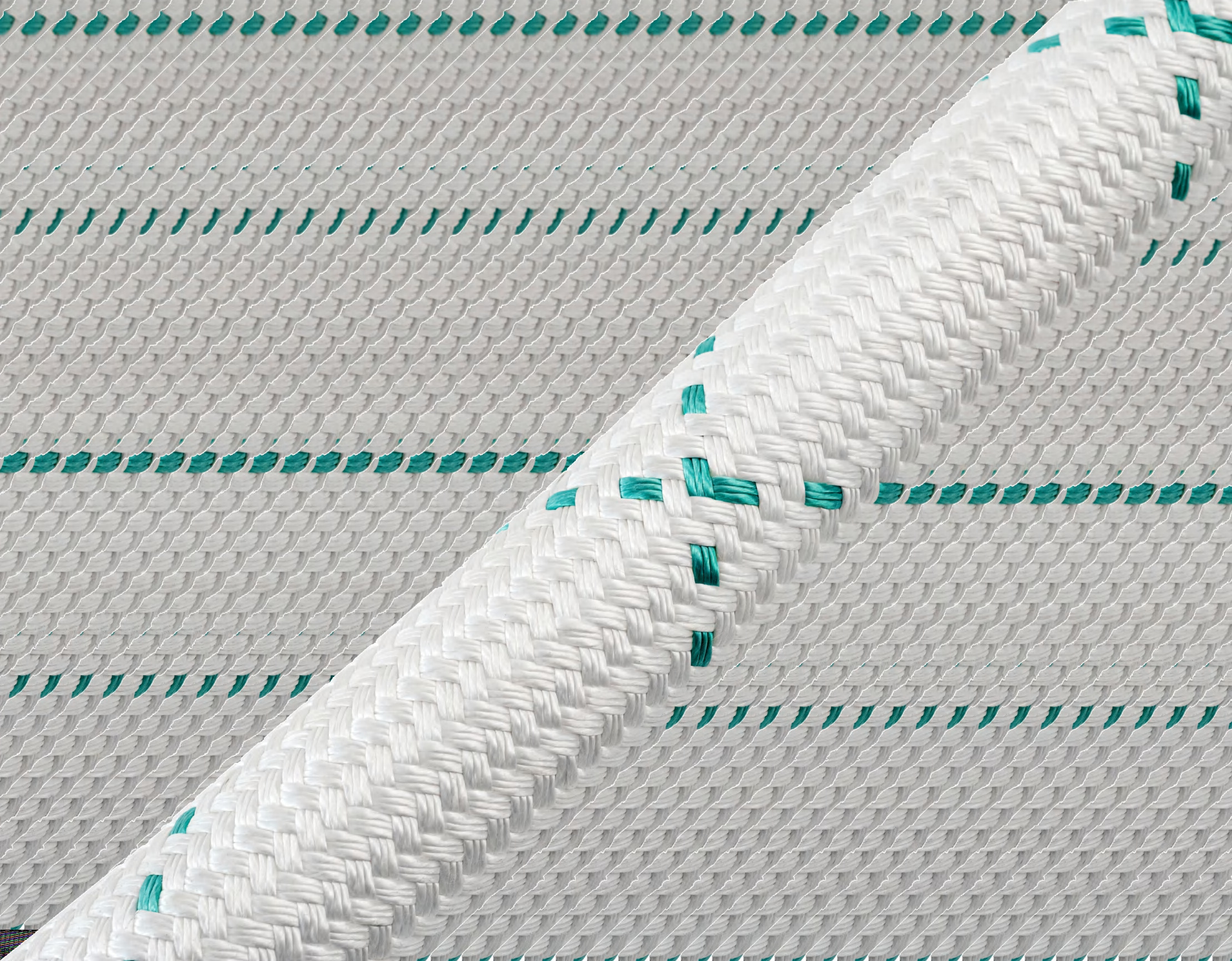

SINOROPE® is a parallel-construction rope using high-strength marine-grade fibres, with a filter belt and outer protective jacket. World-leading product design — high strength, excellent abrasion resistance, anti-corrosion, UV resistance. Capable of coping with the complex environment of all types of deep-sea mooring operations. Deployed globally across multiple offshore deepwater projects.
| Core Material | HMPE (optional outer jacket) |
| Density | 0.97 g/cm³ Floating |
| Melting Point | 144–155 °C |
| Elongation at Break | 3–4% |
| Abrasion Resistance | Excellent |
| UV Resistance | Excellent |
| Chemical Resistance | Excellent |
| Alt. Core Material | Polyester fibre (optional jacket) |
| Alt. Density | 1.38 g/cm³ |
| Alt. Melting Point | 251 °C |
12-strand double-braid nylon construction, highly abrasion-resistant and with exceptional strength. Both ends are fitted with metal protective sleeves with polyurethane coating to increase rope abrasion resistance. A fixed number of buoyancy floats are added along the rope for hydrostatic performance. Manufactured to OCIMF standards.
| Construction | 12-strand double braid nylon |
| Material | Nylon (Polyamide) |
| Density | 1.14 g/cm³ Sinking |
| Melting Point | 218–258 °C |
| Abrasion Resistance | Excellent |
| UV Resistance | Good |
| Chemical Resistance | Good |
| End Protection | Metal sleeve + PU coating |
Made of High Modulus Polyethylene (HMPE) fibre. Type I is high in strength, light in weight and low in elongation. Types II and III provide better abrasion resistance and longer service life. Under the same diameter, weighs only 12% of steel wire, 20–25% of nylon or polyester rope, 18–20% of polypropylene. Diameter is 55–60% of nylon or polyester rope, 45% of polypropylene. In compliance with OCIMF MEG4.
| Material | HMPE |
| Density | 0.97 g/cm³ Floating |
| Melting Point | 144–155 °C |
| Elongation at Break | 3–4% |
| Abrasion Resistance | Excellent |
| UV Resistance | Excellent |
| Chemical Resistance | Excellent |
| Construction | 8-strand and 12-strand |
Type I · ISO MBF & MEG4 LDBF values shown. Other sizes available on request.
| Dia. mm | Circ. inch | Weight g/m | kg/220m | I — ISO MBF kN | ton | I — MEG4 LDBF kN | ton |
|---|---|---|---|---|---|---|---|
| 16 | 2 | 151 | 33.2 | 240 | 24.5 | 216 | 22.0 |
| 20 | 2-1/2 | 227 | 49.9 | 384 | 39.2 | 346 | 35.3 |
| 24 | 3 | 324 | 71.3 | 533 | 54.4 | 480 | 49.0 |
| 32 | 4 | 589 | 129.6 | 918 | 93.7 | 826 | 84.3 |
| 40 | 5 | 880 | 193.6 | 1329 | 135.6 | 1196 | 122.0 |
| 48 | 6 | 1264 | 278.1 | 1807 | 184.4 | 1626 | 165.9 |
| 56 | 7 | 1760 | 387.2 | 2464 | 251.5 | 2218 | 226.3 |
| 64 | 8 | 2260 | 497.2 | 3092 | 315.5 | 2783 | 284.0 |
| 72 | 9 | 2910 | 640.2 | 3898 | 397.7 | 3508 | 358.0 |
| 80 | 10 | 3530 | 776.6 | 4628 | 472.2 | 4165 | 425.0 |
| 96 | 12 | 4990 | 1097.8 | 6322 | 645.1 | 5690 | 580.6 |
| 120 | 15 | 7980 | 1755.6 | 9856 | 1005.7 | 8870 | 905.1 |
| * MBF: Minimum Breaking Force per ISO 2307. ** LDBF: Line Design Break Force per OCIMF MEG4 appendix B. Other sizes available on request. | |||||||

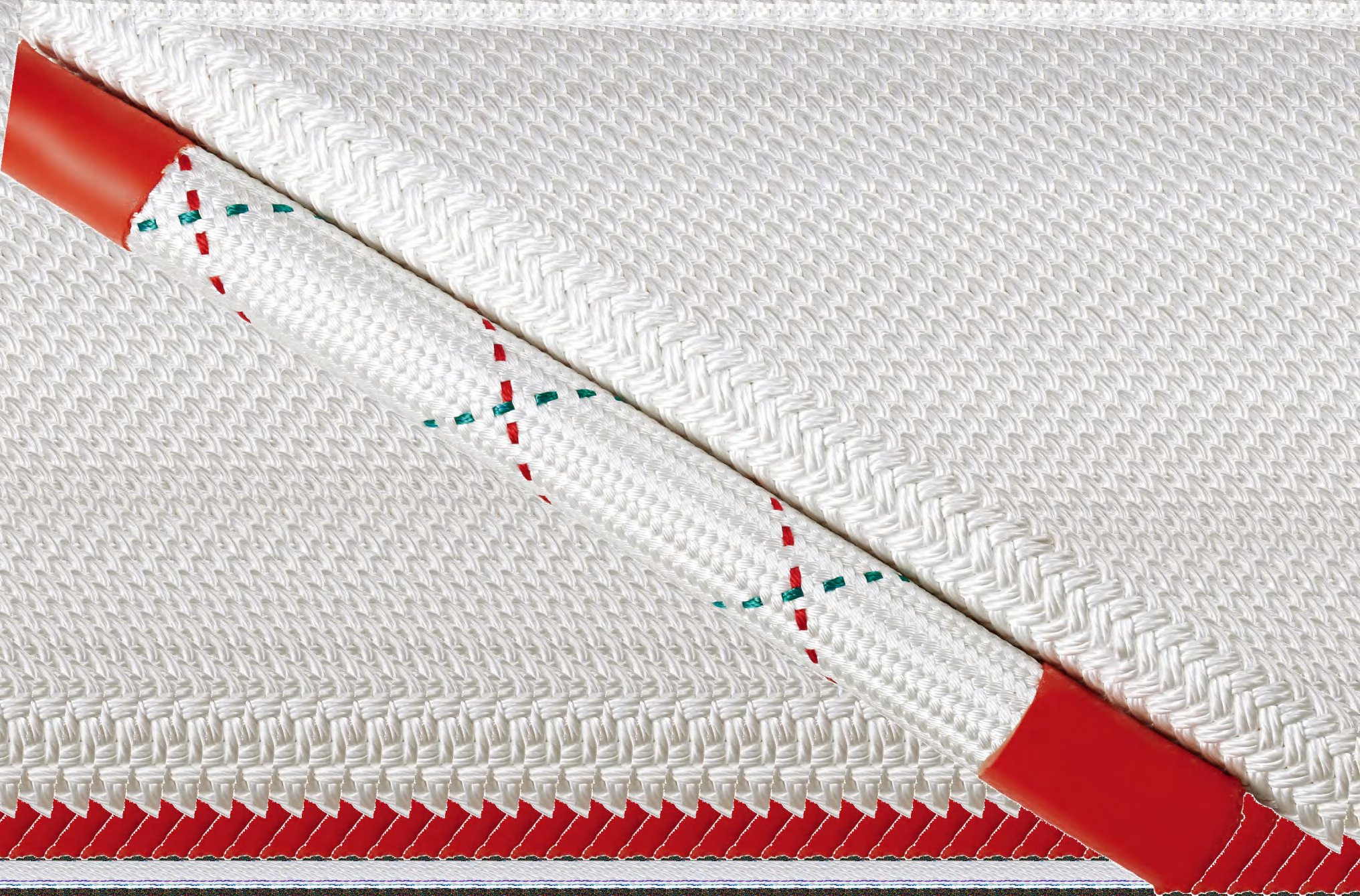

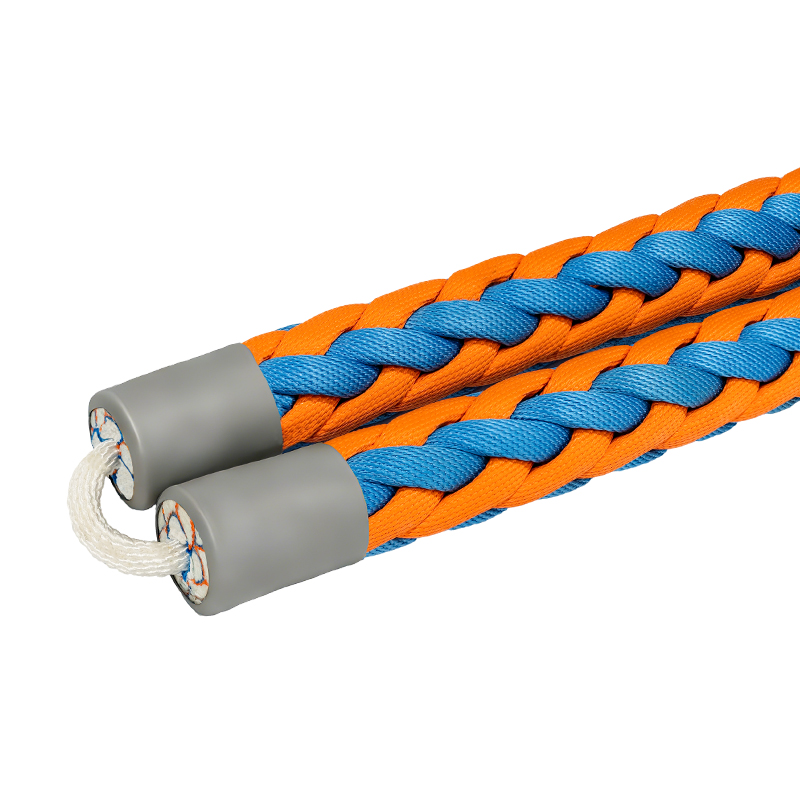

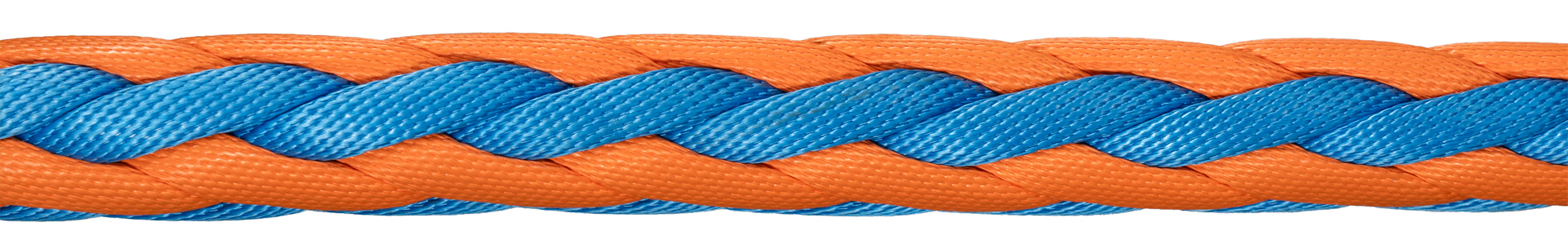

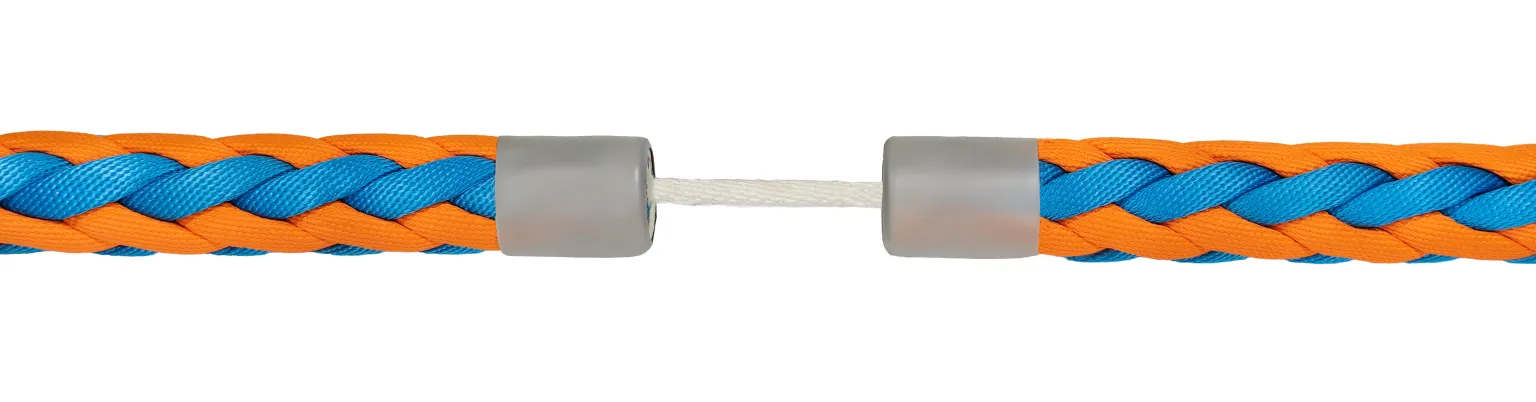

Compared with steel wire rope, POWERNEEMA® RRR is safer and significantly reduces snap-back risk. Under the same size, strength is equivalent to steel wire rope; weight is only 1/8. Replacing traditional synthetic rope, diameter and weight are greatly reduced — easier to operate, saving mooring time and fuel.
| Construction | 12-strand |
| Material | HMPE |
| Density | <1 g/cm³ Floating |
| Elongation at Break | 3–4% |
| Compliance | OCIMF MEG4, CI 1502 |

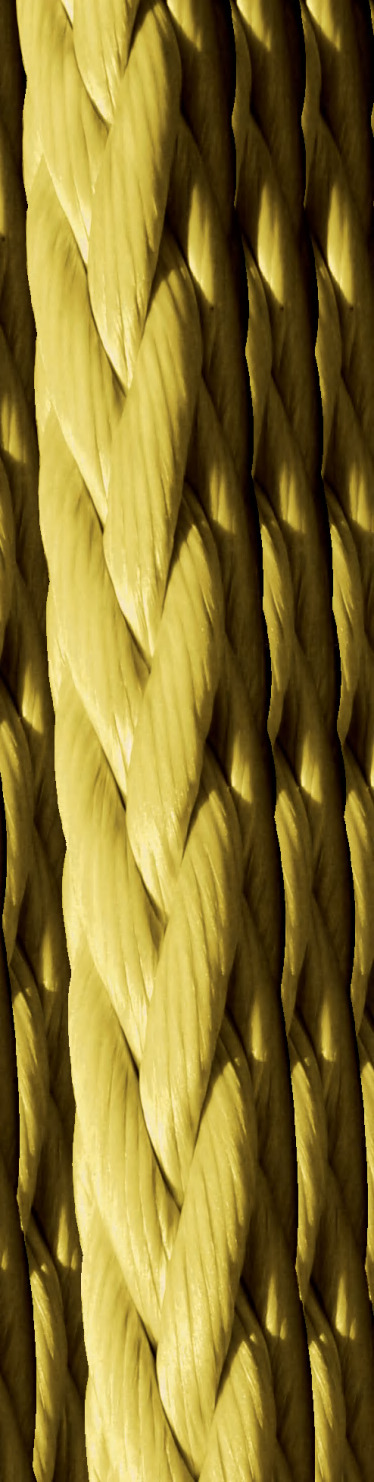

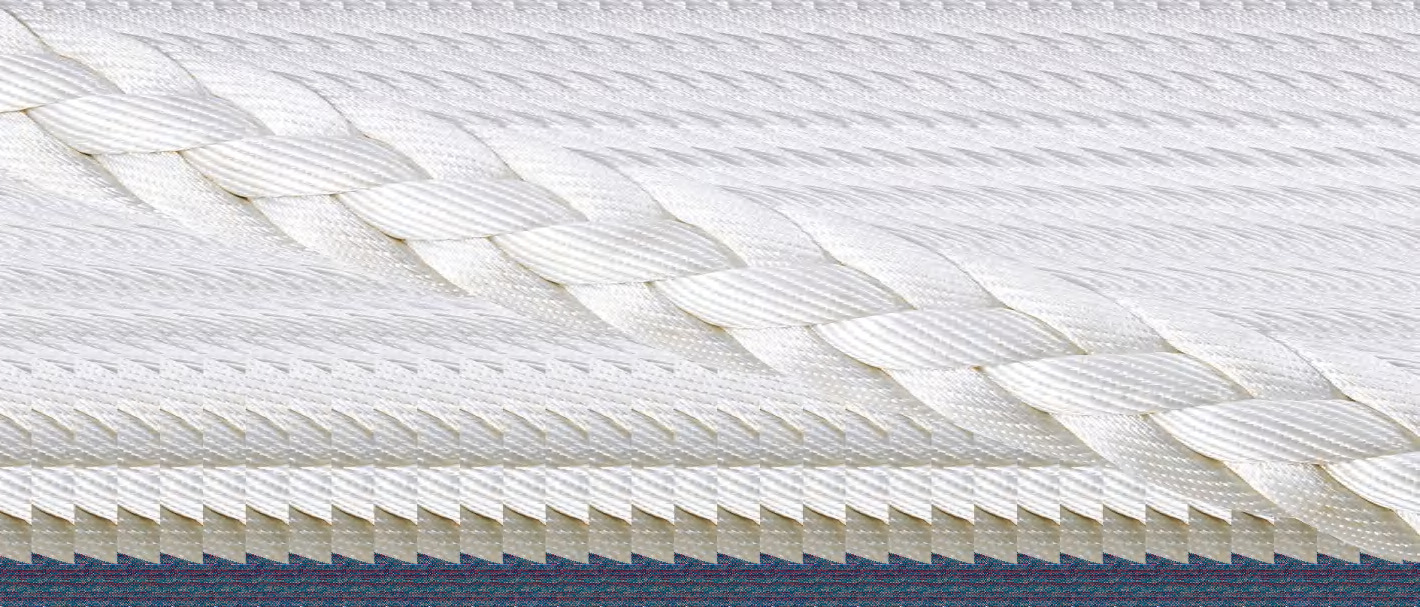

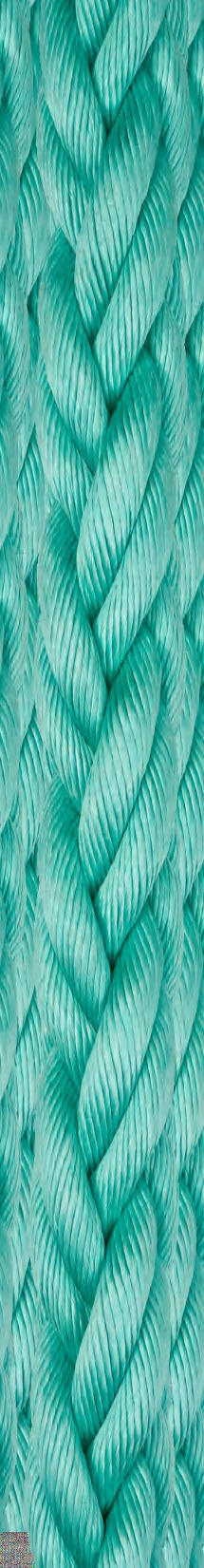

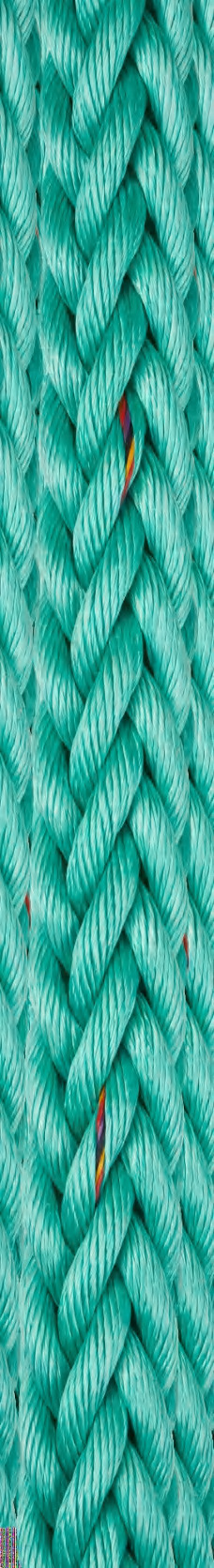

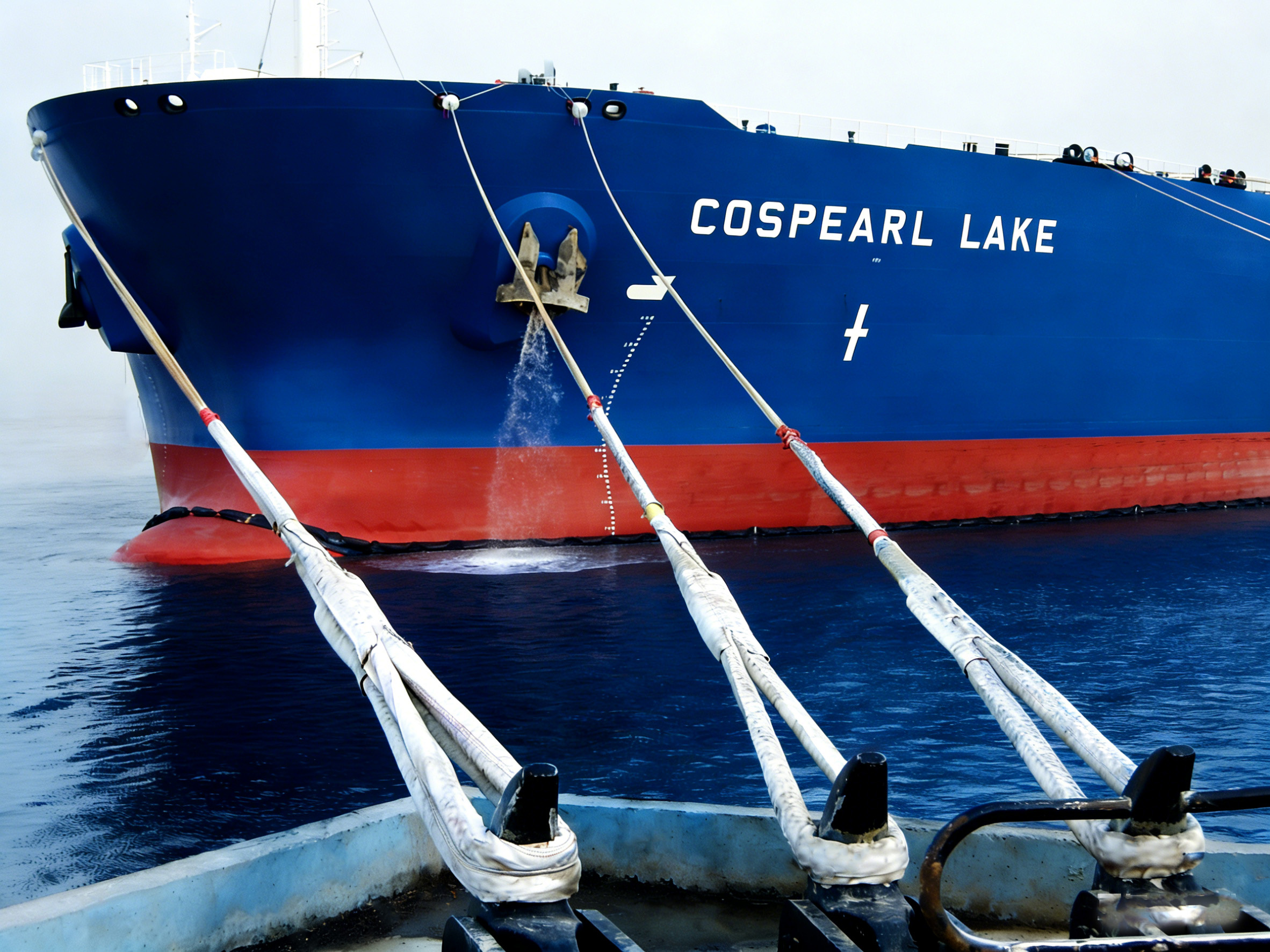

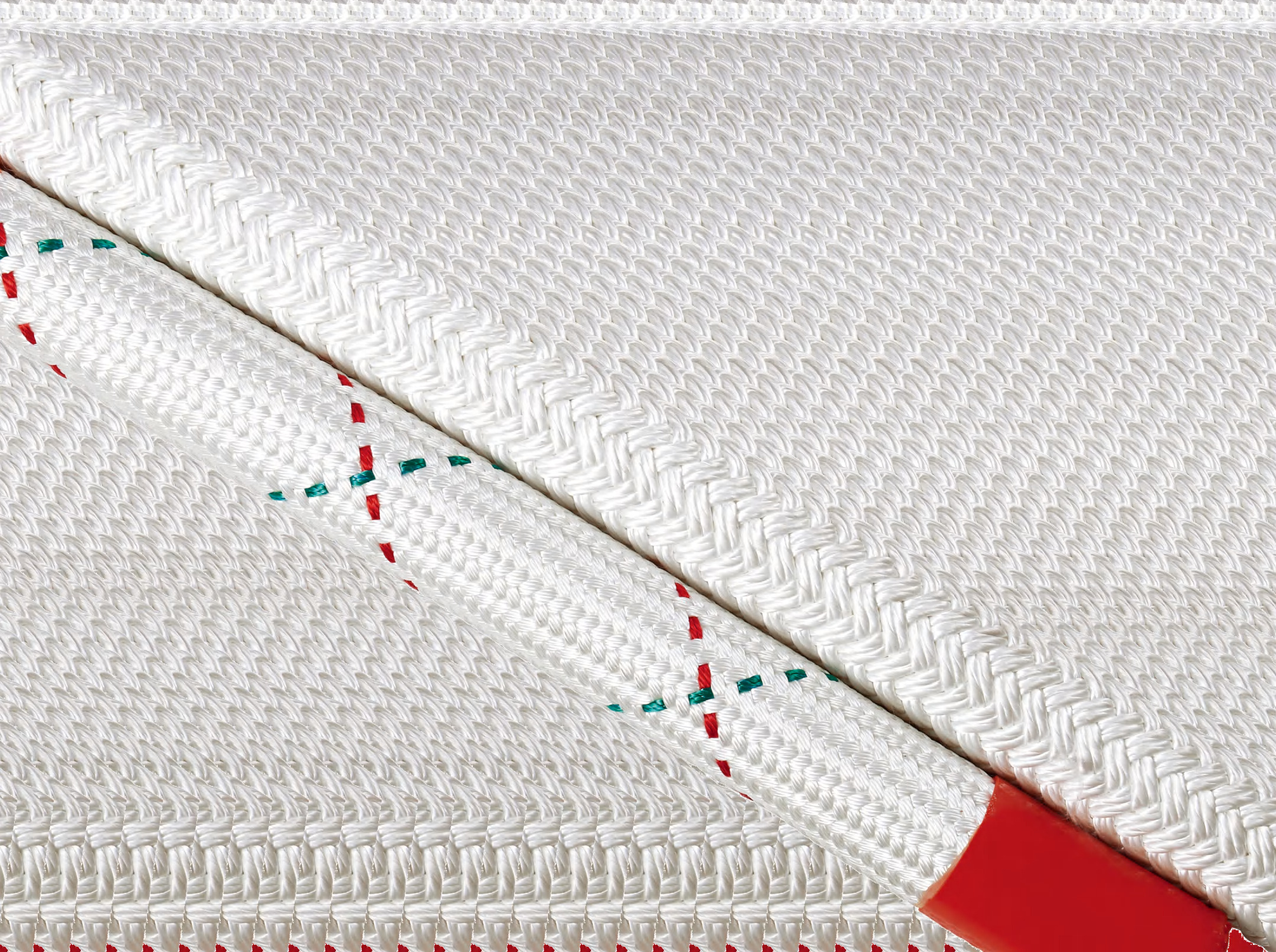

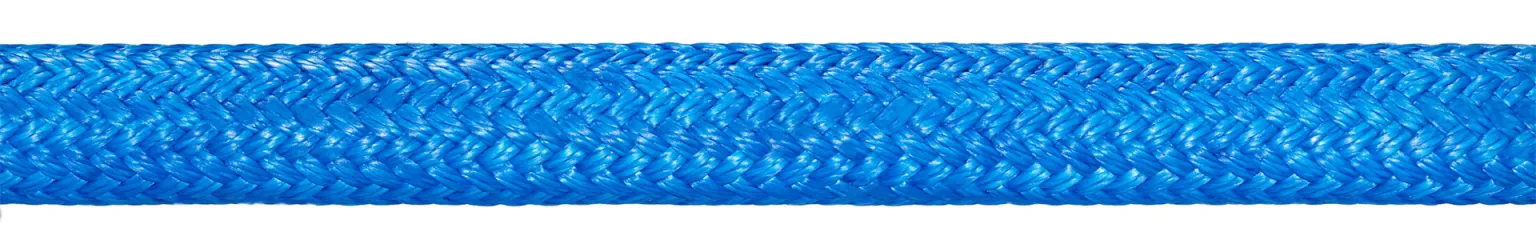

Inner core HMPE with outer braided jacket in HMPE or polyester. Density 0.97 g/cm³ floating (HMPE jacket) or 0.97/1.38 g/cm³ (polyester jacket). Excellent abrasion resistance — the braided jacket protects the inner load-bearing core. Inner elastic components absorb recoil energy, greatly reducing snap-back risk in mooring operations.
| Construction | 12-strand with braided jacket |
| Jacket Options | HMPE or Polyester outer braid |
| Melting Point | HMPE: 145°C / Polyester: 260°C |
| Elongation at Break | 3–4% |
| Compliance | OCIMF MEG4, CI 1502 |
These ropes have high strength, high modulus and high temperature resistance. Under the same diameter, their strength and modulus are 5–6 times those of steel wire and 2–3 times stronger respectively. Excellent electrical insulation and anti-corrosion properties. Application: ETOPS (emergency tow-off pendant), mooring line.
| Material | Aramid |
| Density | 1.44 g/cm³ Sinking |
| Decomposition Temp. | 500 °C |
| Elongation at Break | 3.5–5% |
| Abrasion Resistance | Normal |
| UV Resistance | Weak (protect from UV) |
| Chemical Resistance | Excellent |
| Construction | 8-strand and 12-strand |

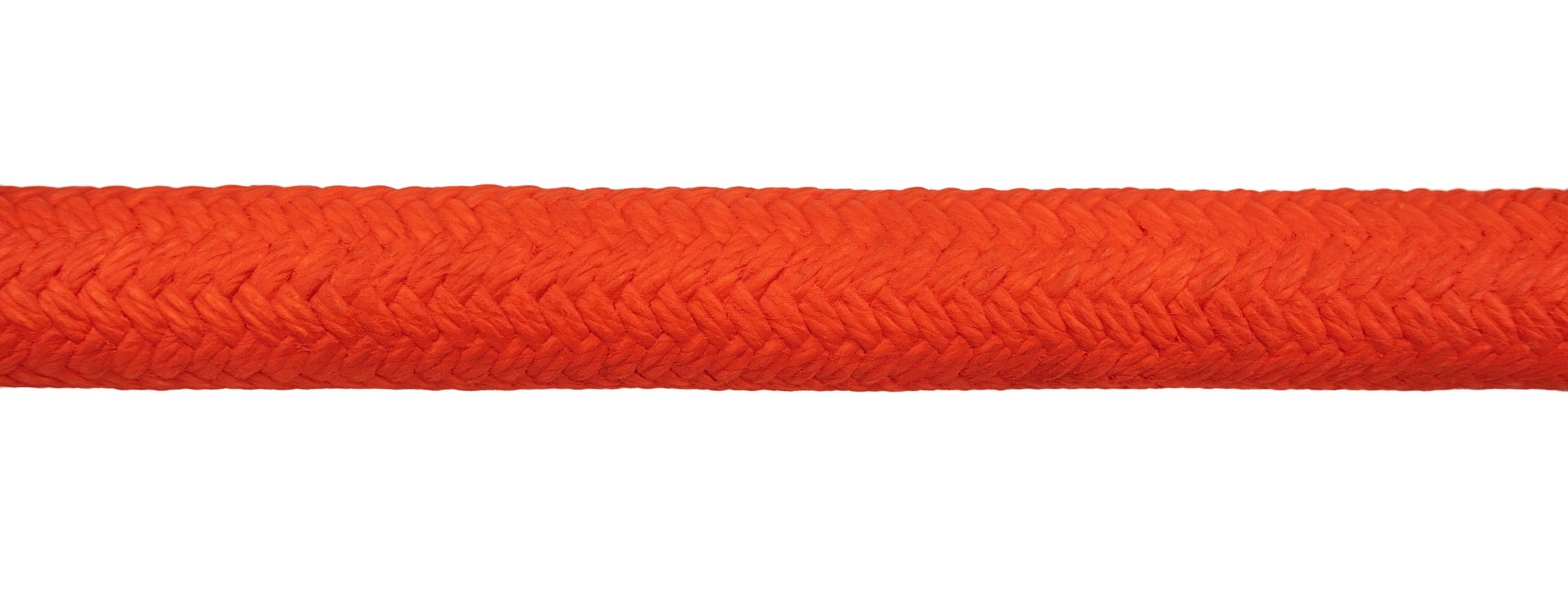

Emergency fireproof towing cable using BlazeGuard™ proprietary technology coating with flame-retardant fibres — revolutionising the balance between lightweight design and ultra-high strength. At high temperatures there are no droplets, no softening, and high strength performance is maintained, avoiding secondary damage in fires. Core value: extending the time window — buying valuable time for evacuation, firefighting, and towing operations. 60–70% lighter than steel wire rope. Fire resistance: continuous heating at 300°C for 30 minutes, strength maintained at same level as steel wire rope.
| Carrying Core | High performance flame-retardant fibre + BlazeGuard™ |
| Construction | Double braided |
| Density | 1.44 g/cm³ |
| Elongation at Break | 3.5–5% |
| Weight vs Steel Wire | 60–70% lighter |
| Fire Resistance | 300°C / 30 min — equal to steel wire |
** LDBF per OCIMF MEG4
| Dia. mm | Weight kg/100m | LDBF kN |
|---|---|---|
| 24 | 44.6 | 343 |
| 30 | 91.7 | 523 |
| 32 | 103 | 591 |
| 42 | 153 | 989 |
| 46 | 186 | 1175 |
| 52 | 222 | 1482 |
| 56 | 250 | 1705 |
| 60 | 286 | 1943 |

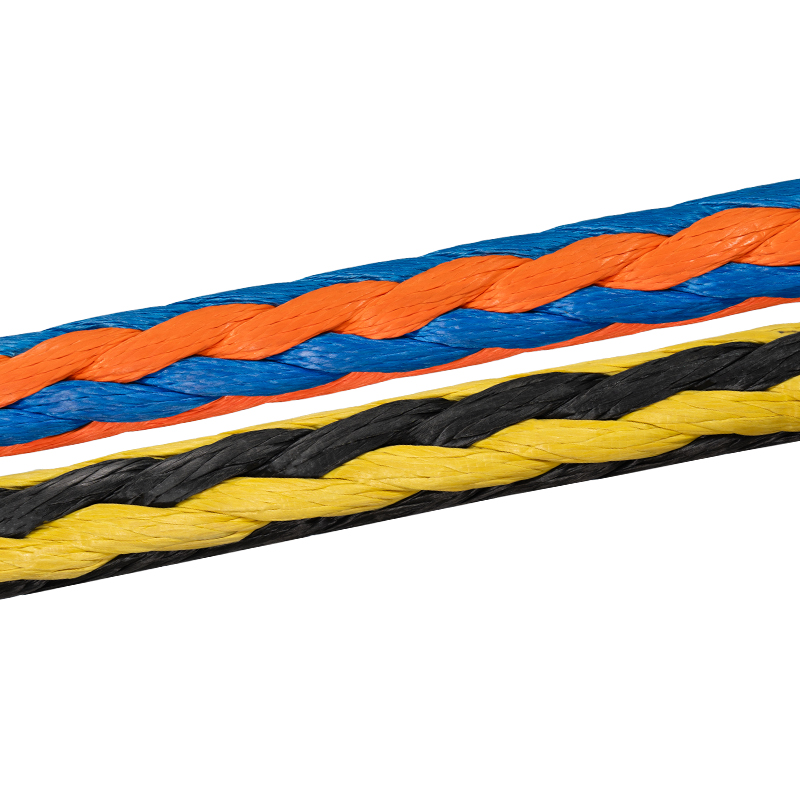

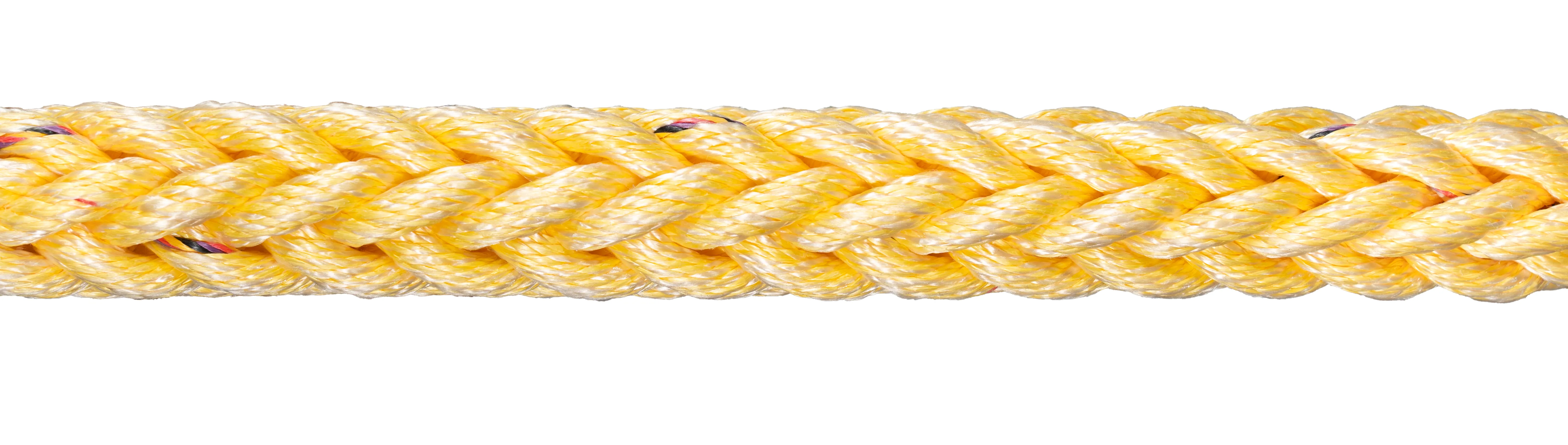

Very good abrasion resistance, sea water corrosion resistance, high strength, anti-static and long service life. Replacing traditional nylon rope — greater convenience, better abrasion resistance, higher strength, static dissipative, longer service life.
| Material | Polyester-Polyolefin (PP/PE) |
| Melting Point | 165°C / 260°C |
| Elongation at Break | 12–15% |
| Abrasion Resistance | Excellent |
| UV Resistance | Good |

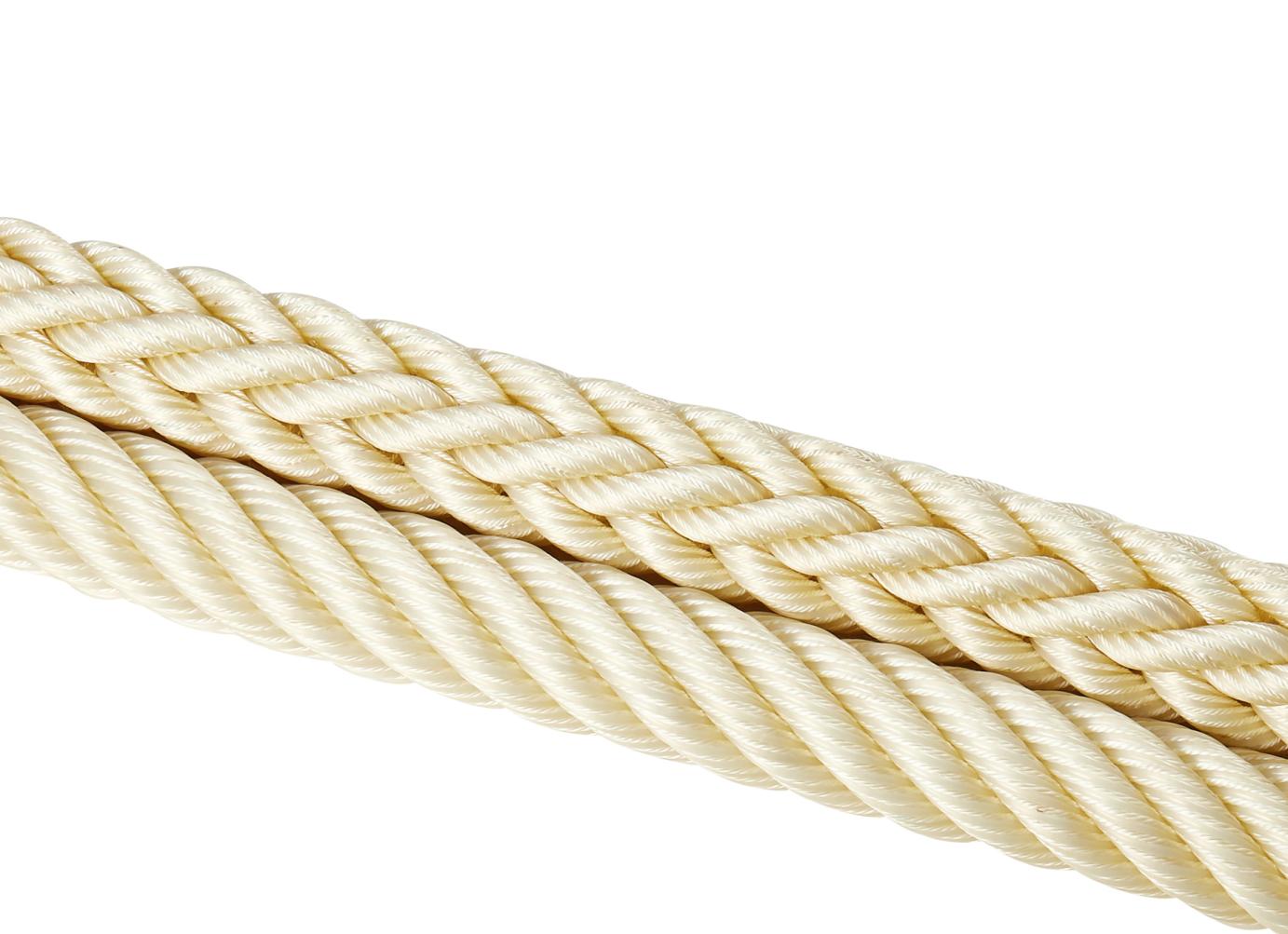

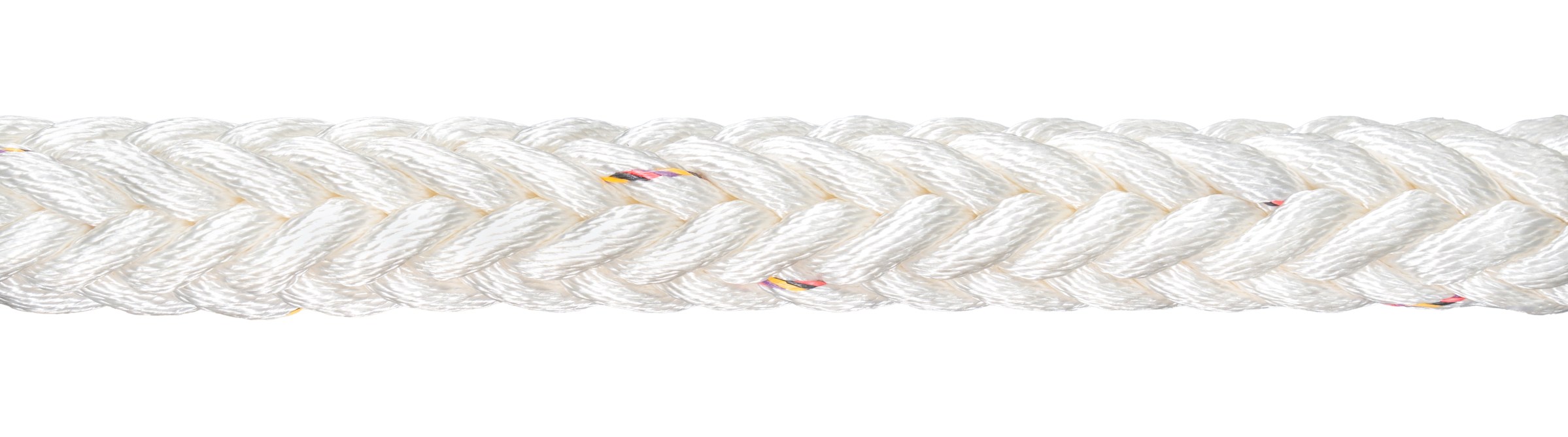

Absorbs water and has high strength, great elongation rate and excellent abrasion resistance. Compared with other chemical fibre ropes, provides best shock absorption, longer service life, and better resistance to UV and other corrosion.
| Material | Nylon (Polyamide) |
| Density | 1.14 g/cm³ Sinking |
| Melting Point | 218–258 °C |
| Elongation at Break | 19–23% |
| Abrasion Resistance | Excellent |
| UV Resistance | Good |
Additional Maritime Products
High-performance nylon filament double-layer braided rope. Excellent strength, flexibility, and abrasion resistance designed specifically for winch line applications on vessels and offshore structures.
Polypropylene yarn ropes in both monofilament and multifilament constructions. Lightweight, floating, excellent chemical resistance. Widely used for general maritime applications, fishing, and harbour operations.
High-performance polypropylene rope with excellent buoyancy, UV resistance and chemical resistance. Strong, flexible, and lightweight — suitable for towing, mooring, and safety applications across a wide range of maritime environments.
Polyester rope with high strength, low elongation, and excellent UV and chemical resistance. Sinking rope ideal for mooring and towing applications requiring dimensional stability and resistance to seawater environments.
Double-layer multifilament braided construction providing excellent flexibility, handling ease, and fatigue resistance. Designed for high-cycle mooring and towing applications where handling efficiency and operational life are priorities.
SOLARIS ECO-FORCE™ — bio-based eco-friendly ropes made using plant-based raw materials. Significantly reducing the carbon footprint from the product manufacturing stage, moving closer to carbon neutrality. When you see this logo on product datasheets it indicates the rope can be made using bio-based materials.
LIFTMAX® fibre rope slings are made from 12-strand HMPE fibre rope. Under the same diameter, stronger than steel and weight is only 1/7 of steel — the ideal choice for lifting operations. LIFTMAX® provides greater flexibility in design and operation and is more convenient, safer, and easier to operate, minimising installation time.
| Material | HMPE / Dyneema® fibre |
| Construction | 12-strand |
| Density | 0.97 (floating) |
| Water Absorption | 0% |
| Working Temperature | Max 70°C |
| Length Tolerance | ±1% of nominal length |
Features: very high strength/weight ratio · no rotation under load · lightweight and easy to operate · easy splicing · excellent shear resistance and abrasion resistance · absolute length uniformity · smooth surface, no burrs.
Single-leg sling (D/d ≥ 2) and round sling (D/d ≥ 3). Other sizes available on request.
| Dia. mm | Weight kg/m | Single-Leg MBF kN | mT | Round Sling MBF kN | mT |
|---|---|---|---|---|---|
| 24 | 0.32 | 480 | 49 | 768 | 78 |
| 32 | 0.59 | 826 | 84 | 1322 | 135 |
| 40 | 0.88 | 1196 | 122 | 1914 | 195 |
| 50 | 1.39 | 1774 | 181 | 2838 | 290 |
| 60 | 2.01 | 2500 | 255 | 4000 | 408 |
| 70 | 2.75 | 3327 | 339 | 5323 | 543 |
| 80 | 3.53 | 4165 | 425 | 6664 | 680 |
| 100 | 5.52 | 6297 | 643 | 10075 | 1028 |
| 120 | 7.98 | 8870 | 905 | 14192 | 1448 |
| 160 | 13.88 | 15759 | 1608 | 25215 | 2573 |
| Note: Other sizes available on request. Single-leg sling MBF based on D/d ≥ 2. Round sling MBF based on D/d ≥ 3. | |||||
An optional braided outer jacket layer can be selected for LIFTMAX® to provide extra protection. Jacket material options include polyester fibre (Polyester) and HMPE fibre. The jacket sleeve itself is not load-bearing, but can reduce strength loss caused by sling abrasion — extending operational life in high-wear environments.
Quality & Capability

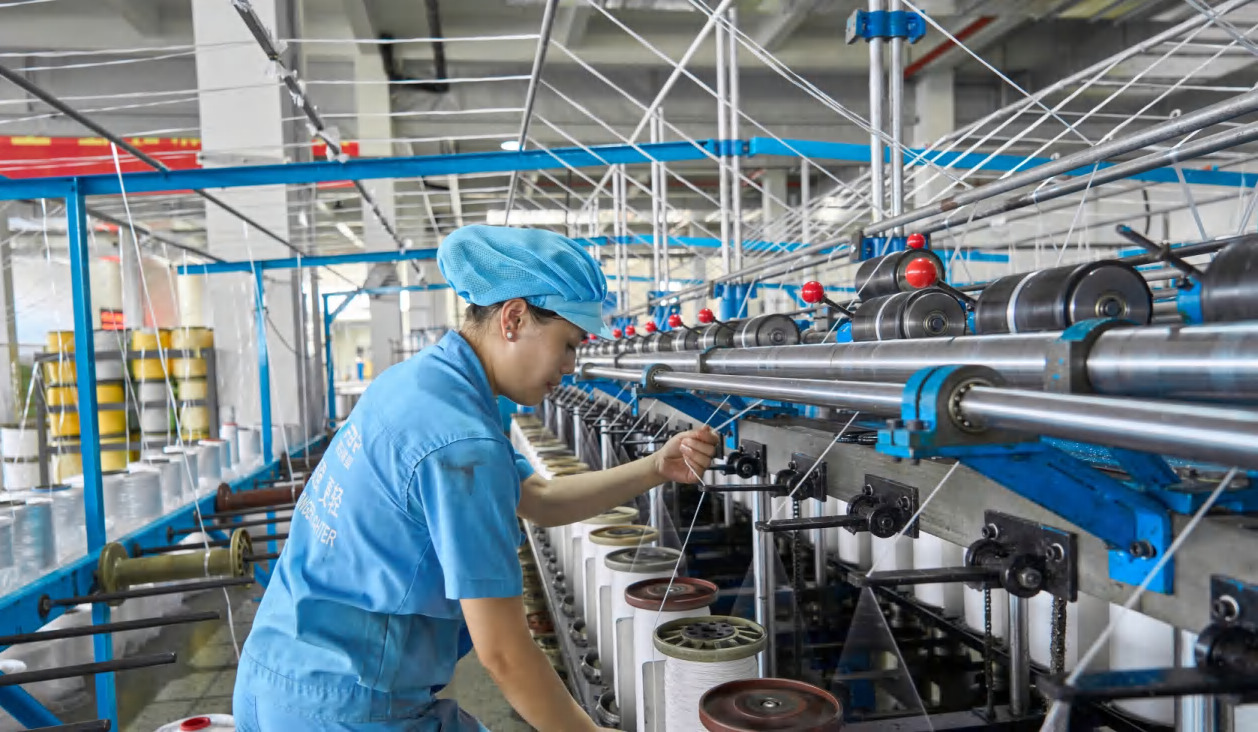

Located in Taizhou Bay Economic and Technological Development Zone, our manufacturing partner's history traces back to the 1950s. Three generations focused on one rope. On 31 March 2021, COSCO SHIPPING (Hong Kong) Co., Ltd (00517.HK) became a capital shareholder, realising the transformation from family business to corporation.
Our manufacturing partner is a National High-Tech Enterprise, National-level "Little Giant" Enterprise (Specialised, Refined, Characteristic, Innovative), and Provincial "Hidden Champion" Enterprise. It holds approval certificates from CCS, DNV, ABS, NK, LR, and BV — the only rope enterprise in China with offshore deep-sea mooring rope type approval certificates from both ABS and DNV, and the first domestic enterprise to obtain OCIMF MEG4 type approval certificates.
| R&D Testing | 2,500-ton, 500-ton, 300-ton, 100-ton, 50-ton testing machines |
| Test Environments | Fatigue, creep, abrasion, ageing, ultra-low temp, static, deep-sea sand infiltration |
| Clients Include | CNOOC, COSCO SHIPPING, China Merchants Groups, CSCC |
| Export Rank | Leading domestic peers — Asia's leading fibre rope enterprise |
High-performance compound fibre ropes for fishing, recreation, and civil applications. Made from PP/Nylon with steel wire core, these products maintain the same strength and elongation under both wet and dry conditions — easy handling, smooth surface, consistent water drainage.
Made by Nylon fibre, polyester fibre, or Power-Mixed (Polyolefin & Polyester mixed) fibre. High elongation. Finished length: 11 metres or 22 metres, with 1.5m / 1.8m spliced eyes on both ends, or according to customer requirements. Canvas cover protection on eyes. In compliance with OCIMF MEG4.
The mooring tails are produced by Nylon, Polyester or mixed material. Length: 11 metres with 1.8m PVC or canvas chafe guard at each end. Splicing part should be at least 5 stacks.
| Tail Types | Single-leg eye tail, round/loop tail |
| Connection | Cow hitch, metal shackle (double connection recommended) |
| Typical Length | 11 m standard; 22 m for open berths |
| Round Sling MBF | Circular tail eye MBF = 1.6 × single-leg MBF |
| Compliance | OCIMF MEG4 |
Mooring Shackle Specifications
| LINK 90T | Tail dia. 56–68mm · Breaking Load 90T · Proof Load 60T · Weight 11.2kg |
| LINK 120T | Tail dia. 72–80mm · Breaking Load 120T · Proof Load 80T · Weight 16.3kg |
| LINK 180T | Tail dia. 88–112mm · Breaking Load 180T · Proof Load 120T · Weight 25.0kg |
| SHACKLE 90T | Tail dia. 68–80mm · Proof Load 60T · Weight 7.8kg |
| SHACKLE 120T | Tail dia. 68–80mm · Proof Load 80T · Weight 13.3kg |
Application: General large tanker combination mooring — galvanised compact-design shackle connecting wire rope and fibre rope.
Rope Protection Gear

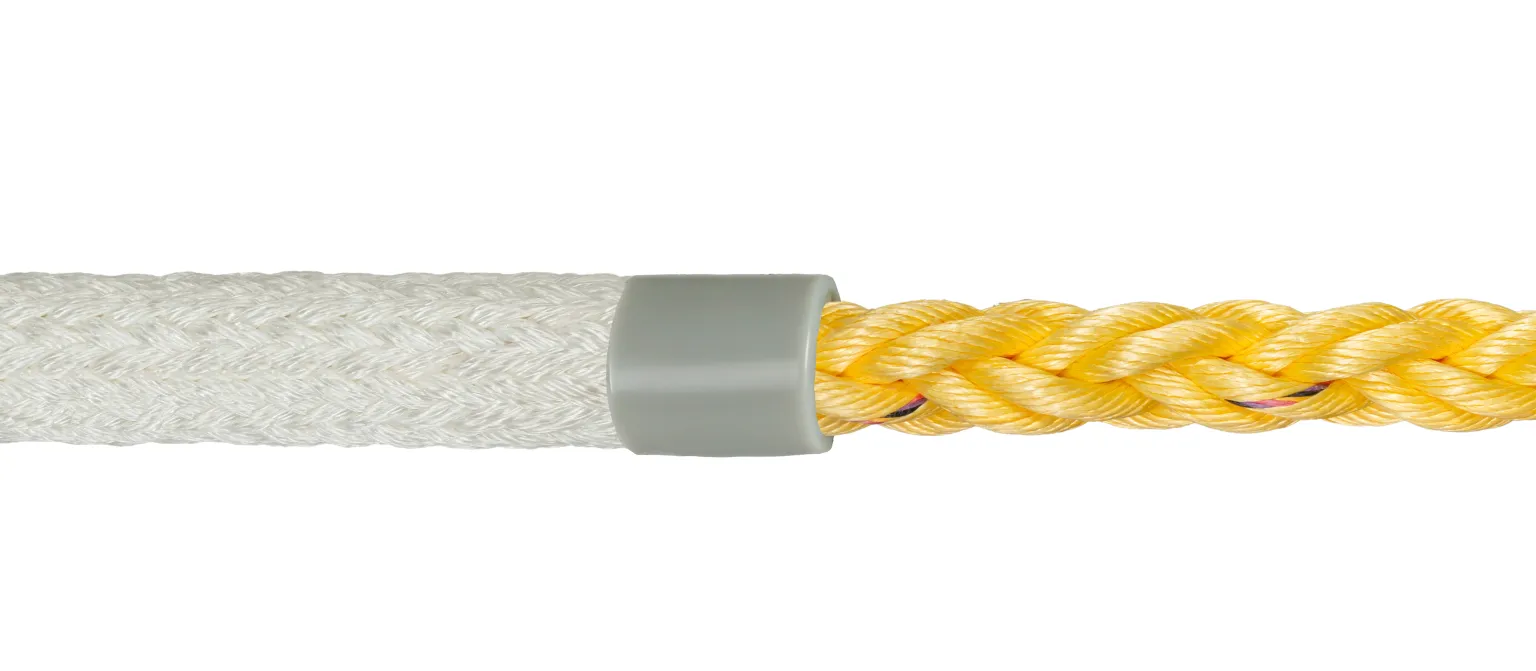

Excellent abrasion and cut resistance, lightweight and stretchable. Installed by splicing its ends into the rope. Semi-hollow design reduces rope overall weight, allows easy inspection and excellent heat dissipation. Versatile — can be used at all positions of mooring lines.
| SN01 | Rope 22–30mm (7/8–1-1/4") |
| SN02 | Rope 32–40mm (1-5/16–1-5/8") |
| SN03 | Rope 42–72mm (1-2/3–2-4/5") |
| SN04 | Rope 74–96mm (3–4") |
| Custom | >96mm (>4") on request |

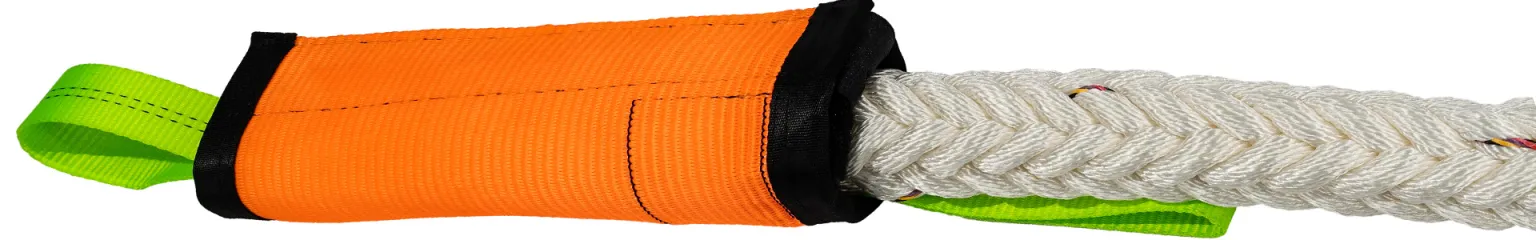

A braided jacket for mooring line protection. Easy installation and removal on site. Size matched to mooring line diameter — custom lengths on request. Good abrasion and cut resistance. Available in Polyester or HMPE material.
| MA | Rope 25–40mm (3-1/8–4") |
| MB | Rope 42–50mm (5-1/4–6-1/4") |
| MC | Rope 52–60mm (6-1/2–7-1/2") |
| MD | Rope 62–75mm (7-3/4–9-3/8") |
| ME | Rope 76–85mm (9-1/2–10-5/8") |

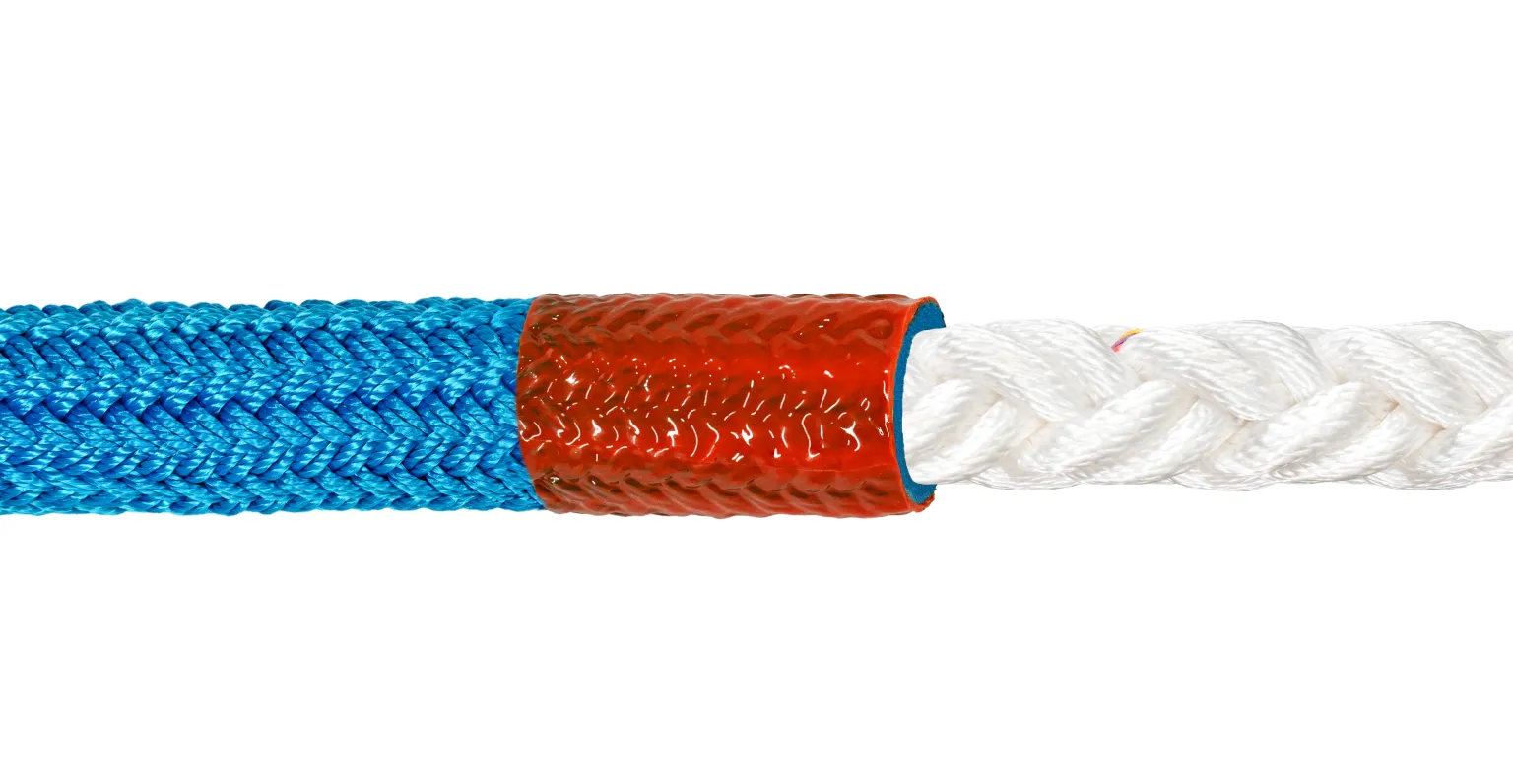

Tightly braided tubular jacket coated with marine polyurethane. Excellent abrasion and cut resistance. Minimal friction between tube and mooring line, reducing heat generation in use. Installation available at factory. Custom lengths and sizes on request.
| ST18 | Rope 18–24mm (3/4–1") |
| ST26 | Rope 26–32mm (1-1/12–1-1/3") |
| ST34 | Rope 34–42mm (1-5/12–1-3/4") |
| ST44 | Rope 44–52mm (1-5/6–2-1/6") |
| ST54 | Rope 54–66mm (2-1/4–2-3/4") |
| ST68 | Rope 68–80mm (2-5/6–3-1/3") |
A full range of hardware accessories to complement our rope systems across all mooring, towing, lifting, and deck operations.
| Retaining Ring Type I | 保线器 I — Standard rope retaining ring |
| Retaining Ring Type II | 保线器 II — Heavy-duty retaining thimble |
| Wide Shackle | 宽体卸扣 — General purpose wide-body shackle |
| Roller | 导缆滚 — Deck roller for rope lead management |
| D-type Shackle | D型卸扣 — Standard D-shackle for rigging connections |
| Custom | Any other special requirements — advise in advance |
Technical Guidance
Customisation
All rope specifications can be customised including: material (HMPE, Aramid, Power-mixed, Polyethylene, Polypropylene, Nylon, Polyester), construction (3-strand, 4-strand, 6-strand, 8-strand, 12-strand, double-braided, parallel-strand), diameter, circumference, length (metres, feet, yards), hand feeling (soft/medium/hard/extra hard), twist direction (Z or S), packaging, and colour (any colour available).
Safe Handling
Choose the right rope for the job — consider working load, method of use and environment. Always examine for damage before and during use. Pay attention to twist direction when uncoiling — Z-twist ropes should be uncoiled counterclockwise; S-twist ropes clockwise. Do not work directly under any rope in use. Always use protection pads at sharp edges. Follow splicing instructions carefully.
Storage & Care
Store ropes away from heat sources, direct sunlight, wind and rain, and corrosive chemical substances. Keep in a dry, well-ventilated environment. Water can reduce the strength of Nylon ropes and cause stiffening — store off the ground. Chemical fibre ropes should not be exposed to high temperatures which will degrade performance. Inspect regularly for any signs of wear, abrasion, or damage.
