Winch Lines & Mooring Tails
Purpose-built winch lines and mooring tails: round, jacketed constructions that run cleanly over winches and capstans, and elastic tails that protect primary mooring lines under OCIMF MEG4 line management.
Representative properties across the WIN® series and mooring tails.
| Constructions | 6-strand mono · 12-strand + jacket |
| Tail constructions | 8 / 12 / 24-strand |
| Fibres | PA · Polyolefin · HT PES |
| Wet/dry strength | 90–100% |
| Compliance | ISO 2307 · OCIMF MEG4 |

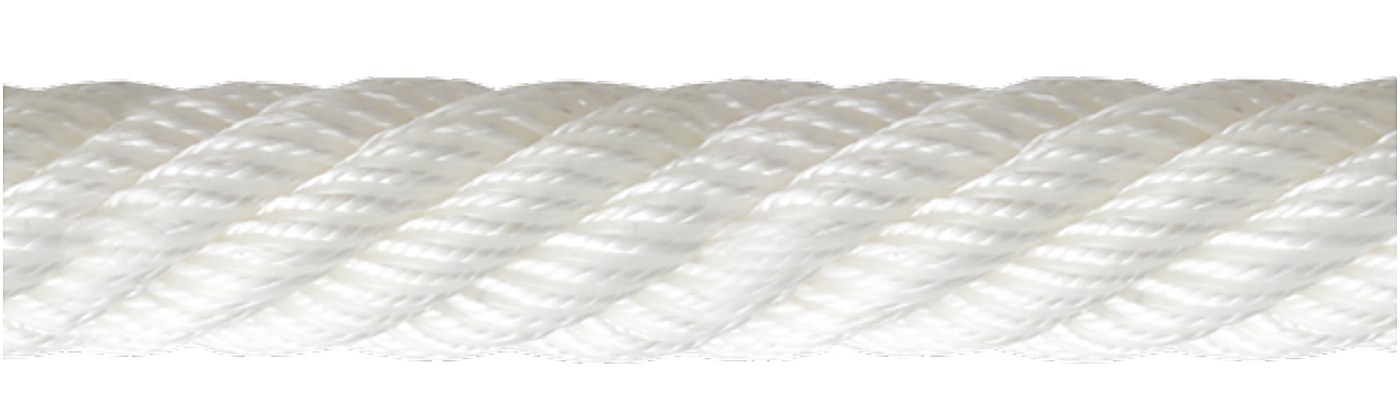

6-strand construction keeps the rope round; polyamide monofilament combined with polyamide multifilament ensures excellent abrasion and UV resistance. Round and stiff construction runs easily over a winch, much lighter and easier to handle than the steel rope it replaces.
| Construction | 6-strand |
| Fibre | PA monofilament + multifilament |
| Specific gravity | 1.14 |
| Melting point | 215 °C |
| Breaking elongation | 15–28% |
WIN-MONO®, by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL ton | MBL kN | LDBF ton | LDBF kN |
|---|---|---|---|---|---|---|---|---|
| 40 | 1-5/8 | 5 | 105.0 | 231.0 | 31.0 | 304 | 27.9 | 273 |
| 44 | 1-3/4 | 5-1/2 | 124.0 | 272.8 | 42.0 | 412 | 37.8 | 370 |
| 48 | 2 | 6 | 148.0 | 325.6 | 50.0 | 490 | 45.0 | 441 |
| 52 | 2-1/8 | 6-1/2 | 163.0 | 358.6 | 54.1 | 530 | 48.7 | 477 |
| 56 | 2-1/4 | 7 | 200.0 | 440.0 | 66.5 | 652 | 59.9 | 587 |
| 60 | 2-1/2 | 7-1/2 | 217.0 | 477.4 | 70.0 | 686 | 63.0 | 617 |
| 64 | 2-5/8 | 8 | 246.0 | 541.2 | 81.0 | 794 | 72.9 | 714 |
| 68 | 2-3/4 | 8-1/2 | 281.0 | 618.2 | 94.2 | 923 | 84.8 | 831 |
| 72 | 3 | 9 | 328.0 | 721.6 | 106.5 | 1044 | 95.9 | 939 |
| 78 | 3-1/13 | 9-3/4 | 370.0 | 814.0 | 120.2 | 1178 | 108.2 | 1060 |
| 84 | 3-1/2 | 10-1/2 | 427.0 | 939.4 | 140.4 | 1376 | 126.4 | 1238 |
| 90 | 3-9/16 | 11-1/4 | 506.0 | 1113.2 | 165.2 | 1619 | 148.7 | 1457 |
| 96 | 4 | 12 | 587.0 | 1291.4 | 190.4 | 1866 | 171.4 | 1679 |
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.

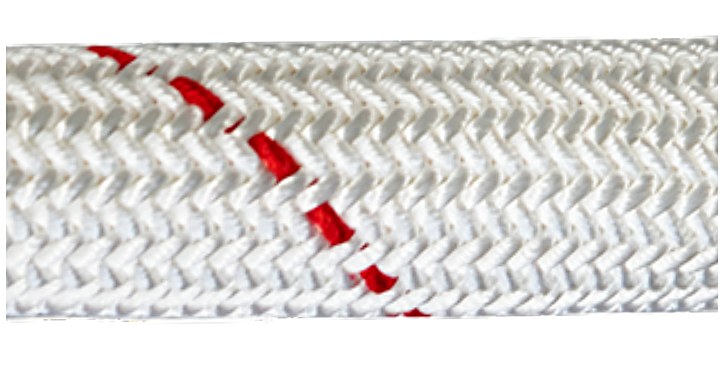

Engineered for high strength: a 12-strand polyolefin load-bearing core covered by 32-strand braided HT polyester. The protective jacket offers very good abrasion resistance and gripping properties while the core ensures maximum strength.
| Core | Polyolefin 12-strand |
| Jacket | 32-strand HT Polyester braid |
| Abrasion resistance | Very good |
| Water absorption | 0% |
WIN-PES®, by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL ton | MBL kN | LDBF ton | LDBF kN |
|---|---|---|---|---|---|---|---|---|
| 48 | 2 | 6 | 136.1 | 299.4 | 46.7 | 458 | 42.0 | 412 |
| 52 | 2-1/8 | 6-1/2 | 157.5 | 346.5 | 56.5 | 554 | 50.9 | 498 |
| 56 | 2-1/4 | 7 | 186.4 | 410.1 | 65.7 | 644 | 59.1 | 579 |
| 60 | 2-1/2 | 7-1/2 | 209.5 | 460.9 | 76.6 | 751 | 68.9 | 676 |
| 64 | 2-5/8 | 8 | 236.4 | 520.1 | 89.1 | 873 | 80.2 | 786 |
| 68 | 2-3/4 | 8-1/2 | 265.8 | 584.8 | 97.1 | 952 | 87.4 | 856 |
| 72 | 3 | 9 | 298.1 | 655.8 | 108.8 | 1066 | 97.9 | 960 |
| 76 | 3-1/8 | 9-1/2 | 332.5 | 731.5 | 121.7 | 1193 | 109.5 | 1073 |
| 80 | 3-1/4 | 10 | 374.7 | 824.3 | 134.4 | 1317 | 121.0 | 1185 |
| 84 | 3-1/2 | 10-1/2 | 414.3 | 911.5 | 145.8 | 1429 | 131.2 | 1286 |
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.

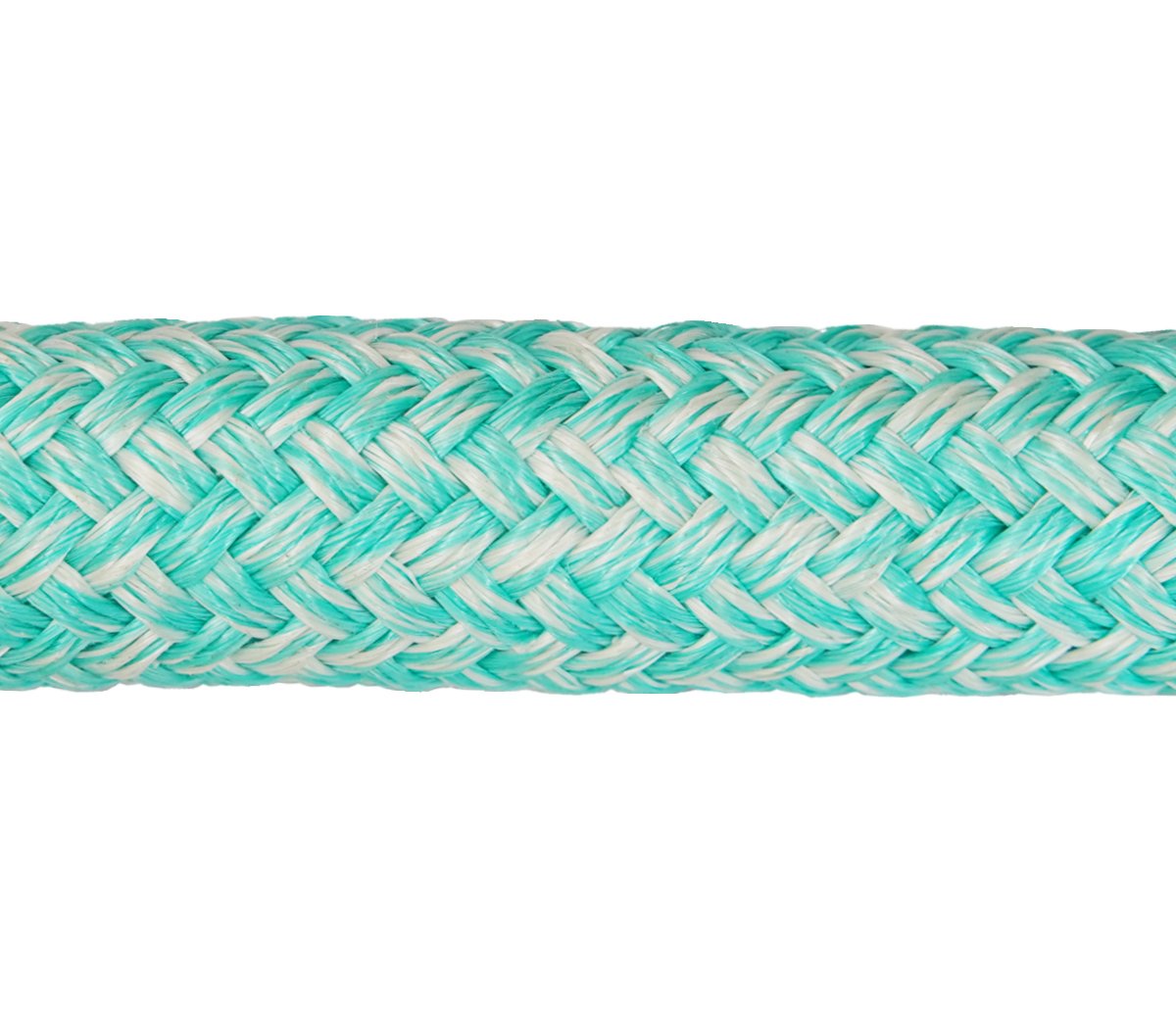

Mixed high-abrasion-resistance fibre braid over a 12-strand load-bearing core, dual-layer construction provides exceptional strength and durability, ensures minimal stretch and delivers reliable, consistent performance when you need it most.
| Core | Polyolefin 12-strand |
| Jacket | Mixed-fibre braid |
| Stretch | Minimal |
| Water absorption | 0% |
WIN-MIX®, by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL ton | MBL kN | LDBF ton | LDBF kN |
|---|---|---|---|---|---|---|---|---|
| 48 | 2 | 6 | 127.0 | 279.4 | 45.4 | 445 | 40.9 | 400 |
| 52 | 2-1/8 | 6-1/2 | 150.0 | 330.0 | 56.9 | 558 | 51.2 | 502 |
| 56 | 2-1/4 | 7 | 173.0 | 380.6 | 66.3 | 650 | 59.7 | 585 |
| 60 | 2-1/2 | 7-1/2 | 199.0 | 437.8 | 78.2 | 766 | 70.4 | 690 |
| 64 | 2-5/8 | 8 | 227.0 | 499.4 | 92.3 | 905 | 83.1 | 814 |
| 68 | 2-3/4 | 8-1/2 | 256.0 | 563.2 | 99.3 | 973 | 89.4 | 876 |
| 72 | 3 | 9 | 287.0 | 631.4 | 111.6 | 1094 | 100.4 | 984 |
| 76 | 3-1/8 | 9-1/2 | 320.5 | 705.1 | 128.4 | 1258 | 115.6 | 1132 |
| 80 | 3-1/4 | 10 | 354.0 | 778.8 | 138.7 | 1359 | 124.8 | 1223 |
| 84 | 3-1/2 | 10-1/2 | 391.0 | 860.2 | 147.6 | 1446 | 132.8 | 1302 |
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.

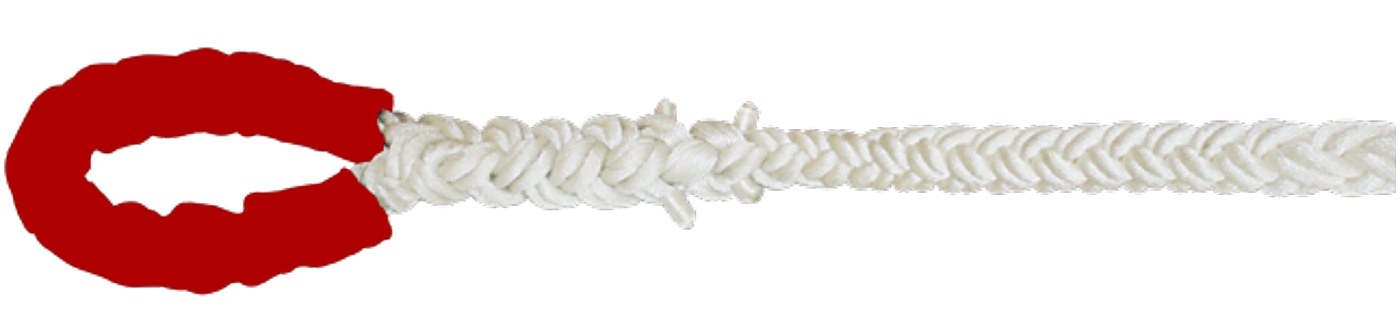

Mooring tails provide good elasticity and sudden shock absorption when windy weather or big waves come, a necessary protection for the primary mooring line. Easy to splice, UV-resistant, rot-proof with high abrasion resistance.
| Construction | 8 / 12 / 24-strand |
| Versions | DURA TAIL (PA/PES) · TOUGH TAIL (mixed fibre) |
| Feature | Shock absorption for primary lines |
| Compliance | OCIMF MEG4 tails |
Sizes and performance data available on request, configured to duty.
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.
Jacketed winch lines and elastic tails that protect your primary mooring lines.
Round, stiff, runs cleanly over winches, far lighter than wire.
Maximum strength with very good abrasion resistance.
Mixed-fibre braid over a 12-strand load-bearing core.
Elastic shock absorption that protects primary mooring lines.
