Towing, Fishing & Utility Rope Series
The TOUGH® series covers high-tenacity polyolefin, polypropylene and polyethylene lines for towing, fishing, aquaculture and utility duty — headlined by TOUGH-MIX PRO® RRR, the OCIMF MEG4 reduced-recoil-risk mooring rope.
Representative properties across the TOUGH® series. Each line is detailed with full performance data below.
| Fibres | Polyolefin · PP · PE · mixed |
| Constructions | 3 / 8 / 12-strand (+ RRR 12) |
| Density | 0.91–0.97 (floating) |
| Melting point | 132–165 °C |
| Elongation | 12–20% |
| Compliance | ISO 2307 · OCIMF MEG4 (RRR) |

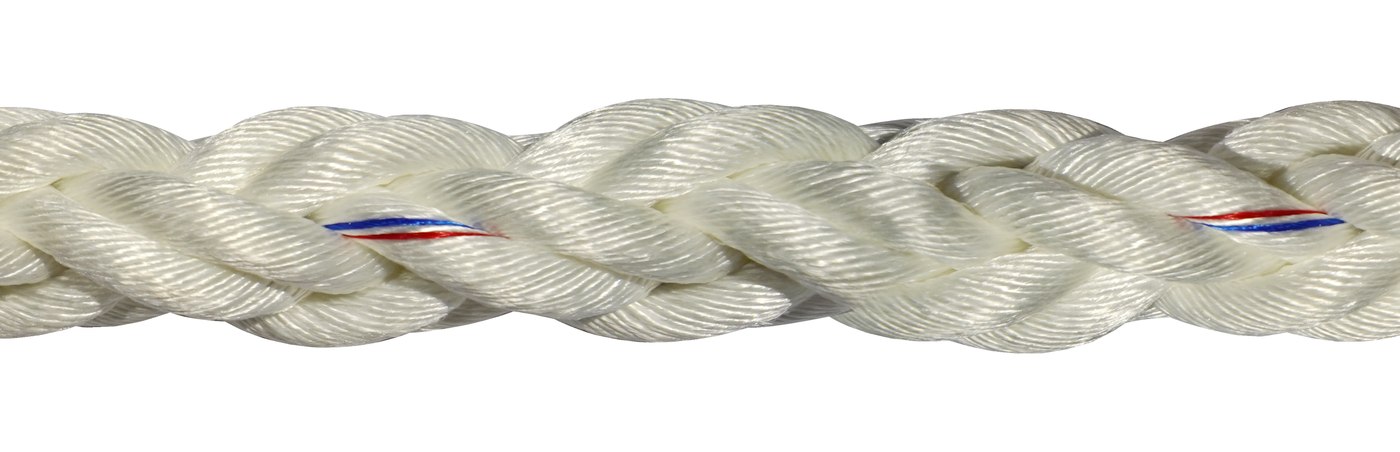

The SNAP BACK REDUCER design is a revolutionary safety solution for mooring applications. The 12-strand construction provides easy handling, while the specially engineered internal structure absorbs and dissipates energy on failure — significantly reducing dangerous snap-back risk and enhancing crew safety. Floating, compliant with OCIMF MEG4.
| Construction | 12-strand + Snap Back Reducer |
| Fibre | HT Polyolefin & Polyester mix |
| Melting point | 165 °C / 260 °C |
| Wet/dry strength | Dry ≈ wet |
| Compliance | OCIMF MEG4 |
TOUGH-MIX PRO® RRR — 12-strand by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL ton | MBL kN | LDBF ton | LDBF kN |
|---|---|---|---|---|---|---|---|---|
| 40 | 1-5/8 | 5 | 90.5 | 199.1 | 36.5 | 357 | 32.8 | 321 |
| 44 | 1-3/4 | 5-1/2 | 109.5 | 240.9 | 43.7 | 428 | 39.3 | 385 |
| 48 | 2 | 6 | 129.4 | 284.7 | 51.6 | 506 | 46.6 | 456 |
| 52 | 2-1/8 | 6-1/2 | 153.9 | 338.6 | 60.1 | 589 | 54.2 | 531 |
| 56 | 2-1/4 | 7 | 177.2 | 389.8 | 69.4 | 680 | 62.4 | 612 |
| 60 | 2-1/2 | 7-1/2 | 204.1 | 449.0 | 79.1 | 776 | 71.3 | 689 |
| 64 | 2-5/8 | 8 | 232.0 | 510.4 | 89.5 | 878 | 80.6 | 790 |
| 68 | 2-3/4 | 8-1/2 | 262.4 | 577.3 | 100.3 | 983 | 90.3 | 885 |
| 72 | 3 | 9 | 293.8 | 646.4 | 111.9 | 1097 | 100.8 | 988 |
| 80 | 3-1/4 | 10 | 362.6 | 797.7 | 136.6 | 1339 | 123.0 | 1205 |
| 88 | 3-5/8 | 11 | 437.3 | 962.1 | 164.6 | 1613 | 147.6 | 1446 |
| 96 | 4 | 12 | 521.2 | 1146.6 | 194.4 | 1906 | 174.6 | 1711 |
| 104 | 4-1/4 | 13 | 613.3 | 1349.3 | 225.7 | 2211 | 203.0 | 1989 |
| 112 | 4-5/8 | 14 | 705.4 | 1551.9 | 261.1 | 2559 | 235.5 | 2308 |
| 120 | 5 | 15 | 813.9 | 1790.6 | 298.0 | 2920 | 268.2 | 2629 |
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.

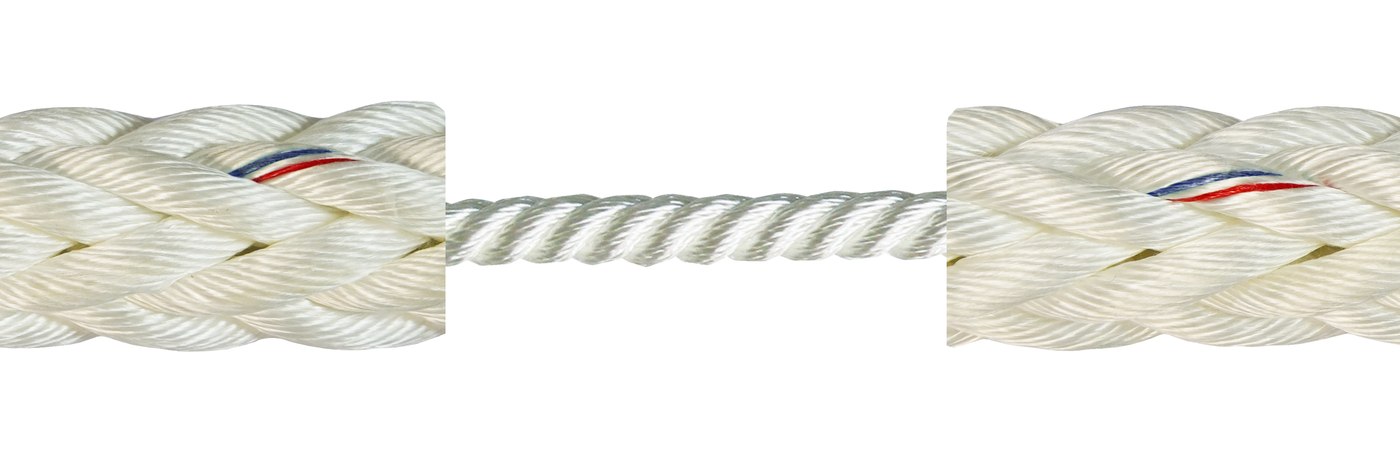

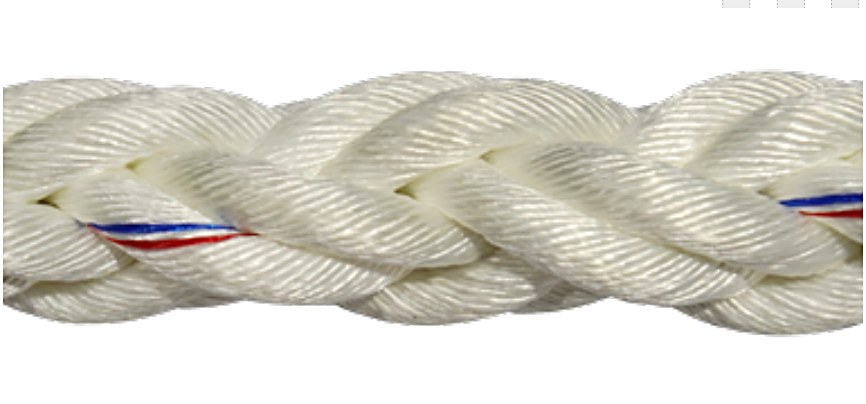

Reinforced high-tenacity polyester & polyolefin composition creates superior breaking strength. Technically designed construction provides higher tensile strength, more flexibility and better abrasion resistance than normal composite rope — retaining stability, safety and higher residual strength after repeated mooring operations.
| Fibre | HT Polyolefin & Polyester mix |
| Melting point | 165 °C / 260 °C |
| Wet/dry strength | Dry ≈ wet |
| Construction | 3 / 8 / 12-strand |
TOUGH-MIX PRO® 3-strand — by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL ton | MBL kN | LDBF ton | LDBF kN |
|---|---|---|---|---|---|---|---|---|
| 12 | 1/2 | 1-1/2 | 7.0 | 15.4 | 3.1 | 30 | 2.8 | 27 |
| 14 | 9/16 | 1-3/4 | 9.5 | 20.9 | 4.1 | 40 | 3.7 | 36 |
| 16 | 5/8 | 2 | 12.4 | 27.3 | 5.3 | 52 | 4.8 | 47 |
| 18 | 3/4 | 2-1/4 | 15.7 | 34.5 | 6.6 | 65 | 6.0 | 59 |
| 22 | 7/8 | 2-3/4 | 23.5 | 51.7 | 9.6 | 94 | 8.6 | 85 |
| 24 | 1 | 3 | 27.9 | 61.4 | 11.3 | 111 | 10.2 | 100 |
| 26 | 1-1/16 | 3-1/4 | 32.8 | 72.2 | 13.3 | 130 | 11.9 | 117 |
| 28 | 1-1/8 | 3-1/2 | 38.0 | 83.6 | 15.3 | 150 | 13.8 | 135 |
| 30 | 1-1/4 | 3-3/4 | 43.7 | 96.1 | 17.3 | 170 | 15.6 | 153 |
| 32 | 1-5/16 | 4 | 49.7 | 109.3 | 19.6 | 192 | 17.6 | 173 |
| 36 | 1-1/2 | 4-1/2 | 62.9 | 138.4 | 24.7 | 242 | 22.2 | 218 |
| 40 | 1-5/8 | 5 | 77.6 | 170.7 | 30.2 | 296 | 27.2 | 266 |
| 44 | 1-3/4 | 5-1/2 | 93.9 | 206.6 | 36.1 | 354 | 32.5 | 319 |
| 48 | 2 | 6 | 111.0 | 244.2 | 42.8 | 419 | 38.5 | 377 |
| 52 | 2-1/8 | 6-1/2 | 132.0 | 290.4 | 49.8 | 488 | 44.8 | 439 |
| 56 | 2-1/4 | 7 | 152.0 | 334.4 | 57.3 | 562 | 51.6 | 506 |
| 60 | 2-1/2 | 7-1/2 | 175.0 | 385.0 | 65.5 | 642 | 59.0 | 578 |
| 64 | 2-5/8 | 8 | 199.0 | 437.8 | 74.1 | 726 | 66.7 | 653 |
| 68 | 2-3/4 | 8-1/2 | 225.0 | 495.0 | 83.0 | 813 | 74.7 | 732 |
| 72 | 3 | 9 | 252.0 | 554.4 | 92.6 | 907 | 83.3 | 816 |
| 80 | 3-1/4 | 10 | 311.0 | 684.2 | 113.0 | 1107 | 101.7 | 996 |
TOUGH-MIX PRO® 8-strand & 12-strand — by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | 8-str MBL t | 8-str MBL kN | 8-str LDBF t | 8-str LDBF kN | 12-str MBL t | 12-str MBL kN | 12-str LDBF t | 12-str LDBF kN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 1 | 3 | 30.7 | 67.5 | 13.3 | 130 | 11.9 | 117 | 13.7 | 134 | 12.3 | 121 |
| 26 | 1-1/16 | 3-1/4 | 36.1 | 79.4 | 15.6 | 153 | 14.1 | 138 | 16.1 | 158 | 14.5 | 142 |
| 28 | 1-1/8 | 3-1/2 | 41.8 | 92.0 | 18.0 | 176 | 16.1 | 158 | 18.5 | 181 | 16.6 | 163 |
| 30 | 1-1/4 | 3-3/4 | 48.1 | 105.8 | 20.4 | 200 | 18.4 | 180 | 21.0 | 206 | 18.9 | 185 |
| 32 | 1-5/16 | 4 | 54.7 | 120.3 | 23.0 | 225 | 20.7 | 203 | 23.6 | 232 | 21.3 | 209 |
| 36 | 1-1/2 | 4-1/2 | 69.2 | 152.2 | 29.0 | 284 | 26.0 | 255 | 29.8 | 293 | 26.8 | 263 |
| 40 | 1-5/8 | 5 | 85.4 | 187.9 | 35.4 | 347 | 31.8 | 312 | 36.5 | 357 | 32.8 | 321 |
| 44 | 1-3/4 | 5-1/2 | 103.3 | 227.3 | 42.4 | 416 | 38.2 | 374 | 43.7 | 428 | 39.3 | 385 |
| 48 | 2 | 6 | 122.1 | 268.6 | 50.1 | 491 | 45.2 | 443 | 51.6 | 506 | 46.6 | 456 |
| 52 | 2-1/8 | 6-1/2 | 145.2 | 319.4 | 58.4 | 572 | 52.7 | 516 | 60.1 | 589 | 54.2 | 531 |
| 56 | 2-1/4 | 7 | 167.2 | 367.8 | 67.3 | 660 | 60.6 | 594 | 69.4 | 680 | 62.4 | 612 |
| 60 | 2-1/2 | 7-1/2 | 192.5 | 423.5 | 76.8 | 753 | 69.2 | 678 | 79.1 | 776 | 71.3 | 698 |
| 64 | 2-5/8 | 8 | 218.9 | 481.6 | 86.9 | 852 | 78.3 | 767 | 89.5 | 878 | 80.6 | 790 |
| 68 | 2-3/4 | 8-1/2 | 247.5 | 544.5 | 97.3 | 954 | 87.7 | 859 | 100.3 | 983 | 90.3 | 885 |
| 72 | 3 | 9 | 277.2 | 609.8 | 108.7 | 1065 | 97.9 | 959 | 111.9 | 1097 | 100.8 | 988 |
| 80 | 3-1/4 | 10 | 342.1 | 752.6 | 132.7 | 1300 | 119.4 | 1170 | 136.6 | 1339 | 123.0 | 1205 |
| 88 | 3-5/8 | 11 | 412.5 | 907.5 | 159.8 | 1566 | 143.3 | 1404 | 164.6 | 1613 | 147.6 | 1446 |
| 96 | 4 | 12 | 491.7 | 1081.7 | 188.8 | 1850 | 169.5 | 1661 | 194.4 | 1906 | 174.6 | 1711 |
| 104 | 4-1/4 | 13 | 578.6 | 1272.9 | 219.1 | 2147 | 197.0 | 1931 | 225.7 | 2211 | 203.0 | 1989 |
| 112 | 4-5/8 | 14 | 665.5 | 1464.1 | 253.5 | 2484 | 228.7 | 2241 | 261.1 | 2559 | 235.5 | 2308 |
| 120 | 5 | 15 | 767.8 | 1689.2 | 289.3 | 2835 | 260.4 | 2552 | 298.0 | 2920 | 268.2 | 2629 |
| 128 | 5-1/4 | 16 | 874.5 | 1923.9 | 326.5 | 3200 | 293.5 | 2876 | 336.3 | 3296 | 302.3 | 2962 |
| 136 | 5-5/8 | 17 | 984.5 | 2165.9 | 366.4 | 3591 | 329.3 | 3227 | 377.4 | 3699 | 339.2 | 3324 |
| 144 | 6 | 18 | 1111.0 | 2444.2 | 409.2 | 4010 | 367.9 | 3605 | 421.5 | 4130 | 378.9 | 3713 |
| 152 | 6-1/4 | 19 | 1243.0 | 2734.6 | 453.3 | 4442 | 407.8 | 3996 | 466.9 | 4575 | 420.0 | 4116 |
| 160 | 6-5/8 | 20 | 1375.0 | 3025.0 | 500.1 | 4901 | 450.5 | 4415 | 515.1 | 5048 | 464.0 | 4547 |
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.

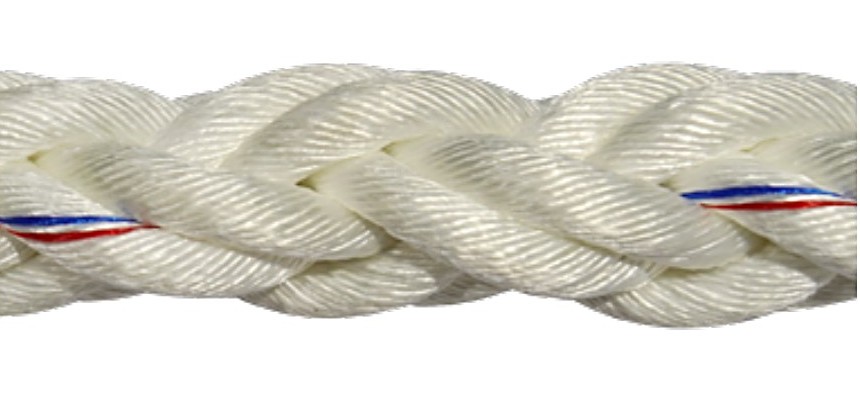

Updated product of high-tenacity polyester & polyolefin — superior to pure polyester or polyolefin: lighter than polyester, stronger break strength than polyolefin, smooth, non-rotational and with excellent coefficient of friction.
| Fibre | HT Polyolefin & Polyester mix |
| Melting point | 165 °C / 260 °C |
| Abrasion resistance | Good |
| Construction | 3 / 8 / 12-strand |
TOUGH-MIX® 3-strand — by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL ton | MBL kN | LDBF ton | LDBF kN |
|---|---|---|---|---|---|---|---|---|
| 12 | 1/2 | 1-1/2 | 7.0 | 15.4 | 2.6 | 26 | 2.4 | 23 |
| 14 | 9/16 | 1-3/4 | 9.5 | 20.9 | 3.5 | 35 | 3.2 | 31 |
| 16 | 5/8 | 2 | 12.4 | 27.3 | 4.6 | 45 | 4.1 | 40 |
| 18 | 3/4 | 2-1/4 | 15.7 | 34.5 | 5.7 | 56 | 5.2 | 51 |
| 22 | 7/8 | 2-3/4 | 23.5 | 51.7 | 8.4 | 82 | 7.5 | 74 |
| 20 | 13/16 | 2-1/2 | 19.4 | 42.7 | 7.0 | 69 | 6.3 | 62 |
| 24 | 1 | 3 | 27.9 | 61.4 | 9.8 | 96 | 8.8 | 87 |
| 26 | 1-1/16 | 3-1/4 | 32.8 | 72.2 | 11.5 | 113 | 10.4 | 102 |
| 28 | 1-1/8 | 3-1/2 | 38.0 | 83.6 | 13.3 | 130 | 11.9 | 117 |
| 30 | 1-1/4 | 3-3/4 | 43.7 | 96.1 | 15.1 | 148 | 13.6 | 133 |
| 32 | 1-5/16 | 4 | 49.7 | 109.3 | 17.0 | 167 | 15.3 | 150 |
| 36 | 1-1/2 | 4-1/2 | 62.9 | 138.4 | 21.4 | 210 | 19.3 | 189 |
| 40 | 1-5/8 | 5 | 77.6 | 170.7 | 26.2 | 257 | 23.6 | 231 |
| 44 | 1-3/4 | 5-1/2 | 93.9 | 206.6 | 31.4 | 308 | 28.3 | 277 |
| 48 | 2 | 6 | 111.0 | 244.2 | 37.1 | 364 | 33.5 | 328 |
| 52 | 2-1/8 | 6-1/2 | 132.0 | 290.4 | 43.3 | 424 | 39.0 | 382 |
| 56 | 2-1/4 | 7 | 152.0 | 334.4 | 49.9 | 489 | 44.9 | 440 |
| 60 | 2-1/2 | 7-1/2 | 175.0 | 385.0 | 56.9 | 558 | 51.2 | 502 |
| 64 | 2-5/8 | 8 | 199.0 | 437.8 | 64.4 | 631 | 58.0 | 568 |
| 68 | 2-3/4 | 8-1/2 | 225.0 | 495.0 | 72.1 | 707 | 64.9 | 636 |
| 72 | 3 | 9 | 252.0 | 554.4 | 80.5 | 789 | 72.4 | 710 |
| 80 | 3-1/4 | 10 | 311.0 | 684.2 | 98.3 | 963 | 88.5 | 867 |
TOUGH-MIX® 8-strand & 12-strand — by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | 8-str MBL t | 8-str MBL kN | 8-str LDBF t | 8-str LDBF kN | 12-str MBL t | 12-str MBL kN | 12-str LDBF t | 12-str LDBF kN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 1 | 3 | 27.9 | 61.4 | 11.8 | 116 | 10.6 | 104 | 12.3 | 121 | 11.0 | 108 |
| 26 | 1-1/16 | 3-1/4 | 32.8 | 72.2 | 13.9 | 136 | 12.4 | 122 | 14.4 | 141 | 12.9 | 127 |
| 28 | 1-1/8 | 3-1/2 | 38.0 | 83.6 | 15.9 | 156 | 14.3 | 140 | 16.6 | 162 | 14.9 | 146 |
| 30 | 1-1/4 | 3-3/4 | 43.7 | 96.1 | 18.2 | 178 | 16.3 | 160 | 18.9 | 185 | 17.0 | 166 |
| 32 | 1-5/16 | 4 | 49.7 | 109.3 | 20.4 | 200 | 18.4 | 180 | 21.2 | 208 | 19.1 | 187 |
| 36 | 1-1/2 | 4-1/2 | 62.9 | 138.4 | 25.7 | 252 | 23.2 | 227 | 26.7 | 262 | 24.1 | 236 |
| 40 | 1-5/8 | 5 | 77.6 | 170.7 | 31.4 | 308 | 28.3 | 277 | 32.7 | 320 | 29.4 | 288 |
| 44 | 1-3/4 | 5-1/2 | 93.9 | 206.6 | 37.8 | 370 | 33.9 | 332 | 39.3 | 385 | 35.2 | 345 |
| 48 | 2 | 6 | 111.0 | 244.2 | 44.6 | 437 | 40.2 | 394 | 46.4 | 454 | 41.8 | 410 |
| 52 | 2-1/8 | 6-1/2 | 132.0 | 290.4 | 51.9 | 509 | 46.7 | 458 | 54.0 | 529 | 48.6 | 476 |
| 56 | 2-1/4 | 7 | 152.0 | 334.4 | 59.9 | 587 | 53.9 | 528 | 62.3 | 610 | 56.0 | 549 |
| 60 | 2-1/2 | 7-1/2 | 175.0 | 385.0 | 68.4 | 670 | 61.4 | 602 | 71.1 | 697 | 63.9 | 626 |
| 64 | 2-5/8 | 8 | 199.0 | 437.8 | 77.2 | 757 | 69.6 | 682 | 80.3 | 787 | 72.4 | 709 |
| 68 | 2-3/4 | 8-1/2 | 225.0 | 495.0 | 86.5 | 848 | 77.9 | 763 | 90.0 | 882 | 81.0 | 794 |
| 72 | 3 | 9 | 252.0 | 554.4 | 96.6 | 947 | 86.9 | 852 | 100.5 | 985 | 90.4 | 886 |
| 80 | 3-1/4 | 10 | 311.0 | 684.2 | 118.0 | 1156 | 106.1 | 1040 | 122.7 | 1202 | 110.4 | 1082 |
| 88 | 3-5/8 | 11 | 375.0 | 825.0 | 142.0 | 1392 | 127.3 | 1248 | 147.7 | 1448 | 132.4 | 1298 |
| 96 | 4 | 12 | 447.0 | 983.4 | 167.8 | 1644 | 150.6 | 1476 | 174.5 | 1710 | 156.6 | 1535 |
| 104 | 4-1/4 | 13 | 526.0 | 1157.2 | 194.7 | 1908 | 175.1 | 1716 | 202.5 | 1984 | 182.1 | 1785 |
| 112 | 4-5/8 | 14 | 605.0 | 1331.0 | 225.3 | 2208 | 203.3 | 1992 | 234.3 | 2296 | 211.4 | 2072 |
| 120 | 5 | 15 | 698.0 | 1535.6 | 257.1 | 2520 | 231.4 | 2268 | 267.4 | 2621 | 240.7 | 2359 |
| 128 | 5-1/4 | 16 | 795.0 | 1749.0 | 290.2 | 2844 | 260.8 | 2556 | 301.8 | 2958 | 271.2 | 2658 |
| 136 | 5-5/8 | 17 | 895.0 | 1969.0 | 325.7 | 3192 | 292.7 | 2868 | 338.7 | 3320 | 304.4 | 2983 |
| 144 | 6 | 18 | 1010.0 | 2222.0 | 363.7 | 3564 | 326.9 | 3204 | 378.2 | 3707 | 340.0 | 3332 |
| 152 | 6-1/4 | 19 | 1130.0 | 2486.0 | 402.9 | 3948 | 362.4 | 3552 | 419.0 | 4106 | 376.9 | 3694 |
| 160 | 6-5/8 | 20 | 1250.0 | 2750.0 | 444.5 | 4356 | 400.4 | 3924 | 462.3 | 4530 | 416.4 | 4081 |
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.

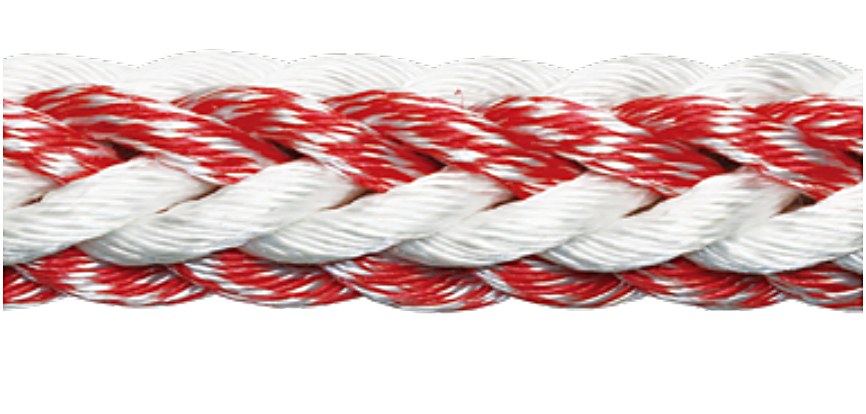

A polypropylene and polyester mixed mooring rope combines the lightweight, buoyant handling of polypropylene with the durability and strength of polyester — easy to handle and abrasion-resistant for reliable performance in various marine environments.
| Fibre | HT Polypropylene & Polyester mix |
| Melting point | 165 °C / 260 °C |
| Wet/dry strength | Dry ≈ wet |
| Construction | 3 / 8 / 12-strand |
TOUGH-FLEX® 3-strand — by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL ton | MBL kN | LDBF ton | LDBF kN |
|---|---|---|---|---|---|---|---|---|
| 12 | 1/2 | 1-1/2 | 7.0 | 15.4 | 2.6 | 26 | 2.4 | 23 |
| 14 | 9/16 | 1-3/4 | 9.5 | 20.9 | 3.5 | 35 | 3.2 | 31 |
| 16 | 5/8 | 2 | 12.4 | 27.3 | 4.6 | 45 | 4.1 | 40 |
| 18 | 3/4 | 2-1/4 | 15.7 | 34.5 | 5.7 | 56 | 5.2 | 51 |
| 22 | 7/8 | 2-3/4 | 23.5 | 51.7 | 8.4 | 82 | 7.5 | 74 |
| 24 | 1 | 3 | 27.9 | 61.4 | 9.8 | 96 | 8.8 | 87 |
| 26 | 1-1/16 | 3-1/4 | 32.8 | 72.2 | 11.5 | 113 | 10.4 | 102 |
| 28 | 1-1/8 | 3-1/2 | 38.0 | 83.6 | 13.3 | 130 | 11.9 | 117 |
| 30 | 1-1/4 | 3-3/4 | 43.7 | 96.1 | 15.1 | 148 | 13.6 | 133 |
| 32 | 1-5/16 | 4 | 49.7 | 109.3 | 17.0 | 167 | 15.3 | 150 |
| 36 | 1-1/2 | 4-1/2 | 62.9 | 138.4 | 21.4 | 210 | 19.3 | 189 |
| 40 | 1-5/8 | 5 | 77.6 | 170.7 | 26.2 | 257 | 23.6 | 231 |
| 44 | 1-3/4 | 5-1/2 | 93.9 | 205.9 | 31.4 | 308 | 28.3 | 277 |
| 48 | 2 | 6 | 111.0 | 244.2 | 37.1 | 364 | 33.5 | 328 |
| 52 | 2-1/8 | 6-1/2 | 132.0 | 290.4 | 43.3 | 424 | 39.0 | 382 |
| 56 | 2-1/4 | 7 | 152.0 | 334.4 | 49.9 | 489 | 44.9 | 440 |
| 60 | 2-1/2 | 7-1/2 | 175.0 | 385.0 | 56.9 | 558 | 51.2 | 502 |
| 64 | 2-5/8 | 8 | 199.0 | 437.8 | 64.4 | 631 | 58.0 | 568 |
| 68 | 2-3/4 | 8-1/2 | 225.0 | 495.0 | 72.1 | 707 | 64.9 | 636 |
| 72 | 3 | 9 | 252.0 | 554.4 | 80.5 | 789 | 72.4 | 710 |
| 80 | 3-1/4 | 10 | 311.0 | 684.2 | 98.3 | 963 | 88.5 | 867 |
TOUGH-FLEX® 8-strand & 12-strand — by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | 8-str MBL t | 8-str MBL kN | 8-str LDBF t | 8-str LDBF kN | 12-str MBL t | 12-str MBL kN | 12-str LDBF t | 12-str LDBF kN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 1 | 3 | 33.2 | 73.0 | 14.1 | 138 | 12.8 | 125 | 14.6 | 143 | 13.3 | 130 |
| 26 | 1-1/16 | 3-1/4 | 39.4 | 86.7 | 16.0 | 157 | 14.5 | 142 | 16.6 | 163 | 15.1 | 148 |
| 28 | 1-1/8 | 3-1/2 | 45.5 | 100.1 | 18.2 | 178 | 16.5 | 162 | 18.9 | 185 | 17.2 | 169 |
| 30 | 1-1/4 | 3-3/4 | 52.6 | 115.7 | 20.6 | 202 | 18.8 | 184 | 21.5 | 210 | 19.5 | 191 |
| 32 | 1-5/16 | 4 | 59.5 | 130.9 | 23.2 | 227 | 21.1 | 206 | 24.1 | 236 | 21.9 | 215 |
| 36 | 1-1/2 | 4-1/2 | 74.1 | 163.0 | 26.2 | 257 | 23.8 | 234 | 27.3 | 267 | 24.8 | 243 |
| 40 | 1-5/8 | 5 | 91.4 | 201.1 | 32.4 | 317 | 29.4 | 288 | 33.7 | 330 | 30.6 | 300 |
| 44 | 1-3/4 | 5-1/2 | 108.9 | 239.6 | 38.2 | 374 | 34.7 | 340 | 39.7 | 389 | 36.1 | 354 |
| 48 | 2 | 6 | 131.9 | 290.2 | 44.6 | 437 | 40.6 | 398 | 46.4 | 455 | 42.2 | 414 |
| 52 | 2-1/8 | 6-1/2 | 150.0 | 330.0 | 51.3 | 503 | 46.6 | 457 | 53.4 | 523 | 48.5 | 475 |
| 56 | 2-1/4 | 7 | 179.0 | 393.8 | 60.9 | 597 | 55.4 | 543 | 63.4 | 621 | 57.6 | 564 |
| 60 | 2-1/2 | 7-1/2 | 200.5 | 441.1 | 68.2 | 669 | 62.0 | 608 | 71.0 | 695 | 64.5 | 632 |
| 64 | 2-5/8 | 8 | 227.0 | 499.4 | 77.5 | 760 | 70.5 | 691 | 80.6 | 790 | 73.3 | 718 |
| 68 | 2-3/4 | 8-1/2 | 254.0 | 558.8 | 84.3 | 826 | 76.6 | 751 | 87.7 | 859 | 79.7 | 781 |
| 72 | 3 | 9 | 284.0 | 624.8 | 96.5 | 945 | 87.7 | 859 | 100.3 | 983 | 91.2 | 894 |
| 80 | 3-1/4 | 10 | 348.5 | 766.7 | 117.5 | 1152 | 106.8 | 1047 | 122.2 | 1198 | 111.1 | 1089 |
| 88 | 3-5/8 | 11 | 420.5 | 925.1 | 141.0 | 1385 | 128.2 | 1256 | 146.6 | 1437 | 133.3 | 1306 |
| 96 | 4 | 12 | 500.0 | 1100.0 | 164.8 | 1615 | 149.8 | 1468 | 171.4 | 1680 | 155.8 | 1527 |
| 104 | 4-1/4 | 13 | 584.0 | 1284.8 | 192.4 | 7885 | 174.9 | 1717 | 200.1 | 1961 | 181.9 | 1783 |
| 112 | 4-5/8 | 14 | 673.0 | 1480.6 | 221.9 | 2175 | 201.7 | 1977 | 230.8 | 2262 | 209.8 | 2056 |
| 120 | 5 | 15 | 774.0 | 1702.8 | 253.3 | 2483 | 230.3 | 2257 | 263.5 | 2582 | 239.5 | 2347 |
| 128 | 5-1/4 | 16 | 884.0 | 1944.8 | 285.2 | 2795 | 259.2 | 2540 | 296.6 | 2906 | 269.6 | 2642 |
| 136 | 5-5/8 | 17 | 995.0 | 2189.0 | 320.0 | 3136 | 290.9 | 2850 | 332.8 | 3261 | 302.5 | 2965 |
| 144 | 6 | 18 | 1123.0 | 2470.6 | 357.4 | 3502 | 324.9 | 3184 | 371.7 | 2643 | 337.9 | 3311 |
| 152 | 6-1/4 | 19 | 1255.0 | 2761.0 | 395.9 | 3880 | 359.9 | 3527 | 411.7 | 4035 | 374.3 | 3668 |
| 160 | 6-5/8 | 20 | 1396.0 | 3071.2 | 436.9 | 4282 | 397.2 | 3893 | 454.4 | 4453 | 413.1 | 4048 |
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.

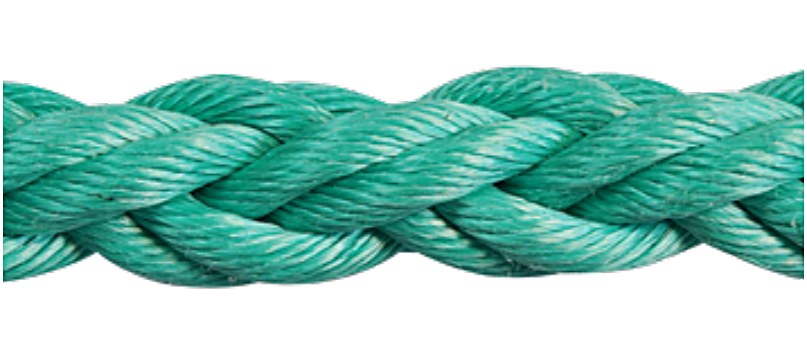

Made of high-tenacity polyolefin fibre — the strongest rope among PP, PE and polyolefin ropes. Excellent breaking strength and remarkable abrasion resistance.
| Fibre | High-tenacity Polyolefin |
| Specific gravity | 0.91–0.93 — floats |
| Melting point | 165 °C |
| Breaking elongation | 12–20% |
TOUGH-HS® 3-strand — by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL ton | MBL kN | LDBF ton | LDBF kN |
|---|---|---|---|---|---|---|---|---|
| 12 | 1/2 | 1-1/2 | 6.8 | 15.0 | 3.0 | 29 | 2.7 | 26 |
| 14 | 9/16 | 1-3/4 | 9.3 | 20.5 | 4.0 | 39 | 3.6 | 35 |
| 16 | 5/8 | 2 | 12.2 | 26.8 | 5.1 | 50 | 4.6 | 45 |
| 18 | 3/4 | 2-1/4 | 15.4 | 33.9 | 6.4 | 63 | 5.8 | 56 |
| 22 | 7/8 | 2-3/4 | 23.0 | 50.6 | 9.3 | 91 | 8.4 | 82 |
| 24 | 1 | 3 | 27.4 | 60.3 | 10.9 | 107 | 9.8 | 96 |
| 26 | 1-1/16 | 3-1/4 | 32.1 | 70.6 | 12.6 | 123 | 11.3 | 111 |
| 28 | 1-1/8 | 3-1/2 | 37.3 | 82.1 | 14.4 | 141 | 13.0 | 128 |
| 30 | 1-1/4 | 3-3/4 | 42.8 | 94.2 | 16.4 | 161 | 14.8 | 145 |
| 32 | 1-5/16 | 4 | 48.7 | 107.1 | 18.4 | 181 | 16.5 | 162 |
| 36 | 1-1/2 | 4-1/2 | 61.6 | 135.5 | 22.8 | 223 | 20.5 | 201 |
| 40 | 1-5/8 | 5 | 76.1 | 167.4 | 27.5 | 269 | 24.8 | 243 |
| 44 | 1-3/4 | 5-1/2 | 92.1 | 202.6 | 32.5 | 319 | 29.2 | 286 |
| 48 | 2 | 6 | 109.2 | 240.2 | 38.1 | 374 | 34.4 | 337 |
| 52 | 2-1/8 | 6-1/2 | 128.1 | 281.8 | 44.1 | 432 | 39.7 | 389 |
| 56 | 2-1/4 | 7 | 149.1 | 328.0 | 50.3 | 493 | 45.3 | 444 |
| 60 | 2-1/2 | 7-1/2 | 171.2 | 376.6 | 57.0 | 559 | 51.3 | 503 |
| 64 | 2-5/8 | 8 | 195.3 | 429.7 | 63.8 | 626 | 57.5 | 564 |
| 68 | 2-3/4 | 8-1/2 | 220.5 | 485.1 | 71.5 | 700 | 64.3 | 630 |
| 72 | 3 | 9 | 246.8 | 543.0 | 79.4 | 779 | 71.5 | 700 |
| 80 | 3-1/4 | 10 | 304.5 | 669.9 | 96.0 | 941 | 86.4 | 846 |
TOUGH-HS® 8-strand & 12-strand — by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | 8-str MBL t | 8-str MBL kN | 8-str LDBF t | 8-str LDBF kN | 12-str MBL t | 12-str MBL kN | 12-str LDBF t | 12-str LDBF kN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 1 | 3 | 28.8 | 63.4 | 13.5 | 132 | 12.2 | 120 | 14.0 | 137 | 12.7 | 125 |
| 26 | 1-1/16 | 3-1/4 | 33.7 | 74.1 | 15.7 | 154 | 14.3 | 140 | 16.3 | 160 | 14.9 | 146 |
| 28 | 1-1/8 | 3-1/2 | 39.4 | 86.7 | 18.0 | 176 | 16.3 | 160 | 18.7 | 183 | 17.0 | 166 |
| 30 | 1-1/4 | 3-3/4 | 44.9 | 98.8 | 20.4 | 200 | 18.6 | 182 | 21.2 | 208 | 19.3 | 189 |
| 32 | 1-5/16 | 4 | 51.1 | 112.4 | 23.1 | 227 | 21.0 | 206 | 24.0 | 236 | 21.9 | 214 |
| 36 | 1-1/2 | 4-1/2 | 64.1 | 141.0 | 29.1 | 285 | 26.4 | 259 | 30.2 | 296 | 27.5 | 269 |
| 40 | 1-5/8 | 5 | 79.1 | 174.0 | 35.5 | 348 | 32.2 | 316 | 36.9 | 362 | 33.5 | 329 |
| 44 | 1-3/4 | 5-1/2 | 97.7 | 214.9 | 42.2 | 414 | 38.4 | 376 | 43.9 | 430 | 39.9 | 391 |
| 48 | 2 | 6 | 114.5 | 251.9 | 49.8 | 488 | 45.3 | 444 | 51.8 | 508 | 47.1 | 462 |
| 52 | 2-1/8 | 6-1/2 | 134.0 | 294.8 | 57.9 | 568 | 52.7 | 516 | 60.2 | 590 | 54.8 | 537 |
| 56 | 2-1/4 | 7 | 156.0 | 343.2 | 66.6 | 652 | 60.5 | 593 | 69.2 | 678 | 62.9 | 617 |
| 60 | 2-1/2 | 7-1/2 | 179.0 | 393.8 | 75.4 | 739 | 68.6 | 672 | 78.4 | 769 | 71.3 | 699 |
| 64 | 2-5/8 | 8 | 203.6 | 447.9 | 84.9 | 832 | 77.1 | 756 | 88.3 | 865 | 80.2 | 786 |
| 72 | 3 | 9 | 258.0 | 567.6 | 106.1 | 1040 | 96.4 | 945 | 110.3 | 1081 | 100.3 | 983 |
| 68 | 2-3/4 | 8-1/2 | 230.0 | 506.0 | 95.3 | 934 | 86.6 | 849 | 99.1 | 971 | 90.1 | 883 |
| 80 | 3-1/4 | 10 | 319.0 | 701.8 | 128.7 | 1262 | 117.0 | 1147 | 133.9 | 1312 | 121.7 | 1193 |
| 88 | 3-5/8 | 11 | 386.0 | 849.2 | 153.8 | 1507 | 139.8 | 1370 | 159.9 | 1567 | 145.4 | 1425 |
| 96 | 4 | 12 | 459.0 | 1009.8 | 181.1 | 1774 | 164.6 | 1613 | 188.3 | 1845 | 171.2 | 1678 |
| 104 | 4-1/4 | 13 | 536.0 | 1179.2 | 209.8 | 2056 | 190.7 | 1869 | 218.2 | 2138 | 198.3 | 1944 |
| 112 | 4-5/8 | 14 | 623.0 | 1370.6 | 242.8 | 2379 | 220.7 | 2163 | 252.5 | 2474 | 229.5 | 2250 |
| 120 | 5 | 15 | 718.0 | 1579.6 | 275.9 | 2704 | 250.8 | 2458 | 286.9 | 2812 | 260.8 | 2556 |
| 128 | 5-1/4 | 16 | 816.0 | 1795.2 | 313.2 | 3069 | 284.7 | 2790 | 325.7 | 3192 | 296.1 | 2902 |
| 136 | 5-5/8 | 17 | 922.0 | 2028.4 | 352.0 | 3450 | 320.0 | 3136 | 366.1 | 3588 | 332.8 | 3261 |
| 144 | 6 | 18 | 1033.0 | 2272.6 | 393.6 | 3858 | 357.9 | 3507 | 409.4 | 4012 | 372.2 | 3647 |
| 152 | 6-1/4 | 19 | 1155.0 | 2541.0 | 436.7 | 4280 | 397.0 | 3891 | 454.2 | 4451 | 412.9 | 4047 |
| 160 | 6-5/8 | 20 | 1276.0 | 2807.2 | 484.2 | 4745 | 440.2 | 4314 | 503.6 | 4935 | 457.8 | 4487 |
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.

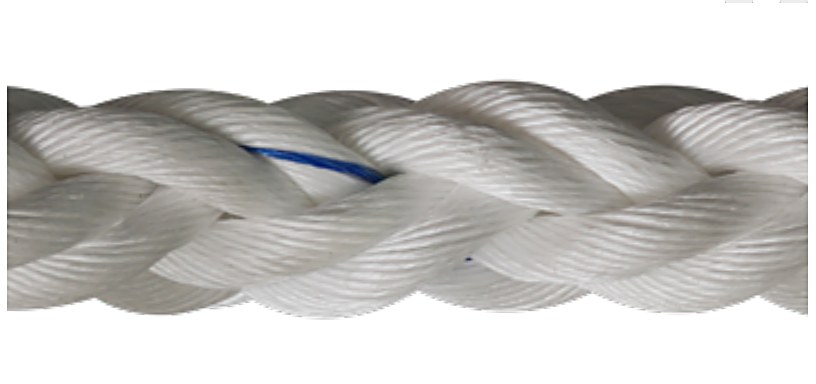

High-strength floating rope. Excellent anti-abrasion properties contribute to a longer working life — the 3/8/12-strand structure makes this rope a multi-purpose ideal for general industrial and commercial fishing applications.
| Fibre | High-tenacity Polyolefin |
| Specific gravity | 0.91–0.93 — floats |
| Melting point | 165 °C |
| UV resistance | Good |
TOUGH-PLUS® 3-strand — by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL ton | MBL kN | LDBF ton | LDBF kN |
|---|---|---|---|---|---|---|---|---|
| 12 | 1/2 | 1-1/2 | 6.5 | 14.3 | 2.6 | 25 | 2.3 | 23 |
| 14 | 9/16 | 1-3/4 | 8.9 | 19.6 | 3.5 | 34 | 3.1 | 31 |
| 16 | 5/8 | 2 | 11.6 | 25.5 | 4.4 | 44 | 4.0 | 39 |
| 18 | 3/4 | 2-1/4 | 14.7 | 32.3 | 5.6 | 55 | 5.0 | 49 |
| 22 | 7/8 | 2-3/4 | 21.9 | 48.2 | 8.1 | 79 | 7.3 | 71 |
| 24 | 1 | 3 | 26.1 | 57.4 | 9.5 | 93 | 8.5 | 84 |
| 26 | 1-1/16 | 3-1/4 | 30.6 | 67.3 | 10.9 | 107 | 9.8 | 96 |
| 28 | 1-1/8 | 3-1/2 | 35.5 | 78.1 | 12.6 | 123 | 11.3 | 111 |
| 30 | 1-1/4 | 3-3/4 | 40.8 | 89.8 | 14.3 | 140 | 12.9 | 126 |
| 32 | 1-5/16 | 4 | 46.4 | 102.1 | 16.0 | 157 | 14.4 | 141 |
| 36 | 1-1/2 | 4-1/2 | 58.7 | 129.1 | 19.8 | 194 | 17.9 | 175 |
| 40 | 1-5/8 | 5 | 72.5 | 159.5 | 23.9 | 234 | 21.5 | 211 |
| 44 | 1-3/4 | 5-1/2 | 87.7 | 192.9 | 28.3 | 277 | 25.4 | 249 |
| 48 | 2 | 6 | 104.0 | 228.8 | 33.2 | 325 | 29.9 | 293 |
| 52 | 2-1/8 | 6-1/2 | 122.0 | 268.4 | 38.4 | 376 | 34.5 | 338 |
| 56 | 2-1/4 | 7 | 142.0 | 312.4 | 43.8 | 429 | 39.4 | 386 |
| 60 | 2-1/2 | 7-1/2 | 163.0 | 358.6 | 49.6 | 486 | 44.6 | 437 |
| 64 | 2-5/8 | 8 | 186.0 | 409.2 | 55.5 | 544 | 50.0 | 490 |
| 68 | 2-3/4 | 8-1/2 | 210.0 | 462.0 | 62.1 | 609 | 55.9 | 548 |
| 72 | 3 | 9 | 235.0 | 517.0 | 69.1 | 677 | 62.1 | 609 |
| 80 | 3-1/4 | 10 | 290.0 | 638.0 | 83.5 | 818 | 75.1 | 736 |
TOUGH-PLUS® 8-strand & 12-strand — by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | 8-str MBL t | 8-str MBL kN | 8-str LDBF t | 8-str LDBF kN | 12-str MBL t | 12-str MBL kN | 12-str LDBF t | 12-str LDBF kN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 1 | 3 | 24.7 | 54.3 | 11.6 | 114 | 10.5 | 103 | 12.1 | 119 | 10.9 | 107 |
| 26 | 1-1/16 | 3-1/4 | 28.9 | 63.6 | 13.6 | 133 | 12.2 | 120 | 14.1 | 138 | 12.7 | 124 |
| 28 | 1-1/8 | 3-1/2 | 33.6 | 73.9 | 15.6 | 153 | 14.0 | 138 | 16.2 | 159 | 14.6 | 143 |
| 30 | 1-1/4 | 3-3/4 | 38.5 | 84.7 | 17.7 | 174 | 16.0 | 157 | 18.5 | 181 | 16.6 | 163 |
| 32 | 1-5/16 | 4 | 43.9 | 96.6 | 20.1 | 197 | 18.1 | 177 | 20.9 | 205 | 18.8 | 184 |
| 36 | 1-1/2 | 4-1/2 | 55.4 | 121.9 | 25.1 | 246 | 22.6 | 221 | 26.1 | 256 | 23.5 | 230 |
| 40 | 1-5/8 | 5 | 68.5 | 150.7 | 30.8 | 302 | 27.7 | 272 | 32.0 | 314 | 28.8 | 283 |
| 44 | 1-3/4 | 5-1/2 | 82.8 | 182.2 | 36.7 | 360 | 33.0 | 324 | 38.2 | 374 | 34.4 | 337 |
| 48 | 2 | 6 | 98.2 | 216.0 | 43.2 | 424 | 38.9 | 382 | 45.0 | 441 | 40.5 | 397 |
| 52 | 2-1/8 | 6-1/2 | 115.2 | 253.4 | 50.3 | 493 | 45.2 | 444 | 52.3 | 513 | 47.1 | 461 |
| 56 | 2-1/4 | 7 | 134.1 | 295.0 | 57.8 | 567 | 52.0 | 510 | 60.1 | 590 | 54.1 | 531 |
| 60 | 2-1/2 | 7-1/2 | 154.0 | 338.8 | 65.5 | 642 | 58.9 | 578 | 68.1 | 668 | 61.3 | 601 |
| 64 | 2-5/8 | 8 | 175.7 | 386.5 | 73.9 | 725 | 66.5 | 653 | 76.9 | 754 | 69.2 | 679 |
| 68 | 2-3/4 | 8-1/2 | 198.4 | 436.5 | 82.9 | 813 | 74.6 | 732 | 86.2 | 846 | 77.6 | 761 |
| 72 | 3 | 9 | 222.1 | 488.6 | 92.3 | 905 | 83.1 | 815 | 96.0 | 941 | 86.4 | 847 |
| 80 | 3-1/4 | 10 | 274.0 | 602.8 | 112.0 | 1098 | 100.8 | 988 | 116.4 | 1142 | 104.8 | 1028 |
| 88 | 3-5/8 | 11 | 331.6 | 729.5 | 133.9 | 1313 | 120.5 | 1182 | 139.2 | 1366 | 125.3 | 1229 |
| 96 | 4 | 12 | 394.0 | 866.8 | 157.5 | 1545 | 141.8 | 1391 | 163.8 | 1607 | 147.5 | 1446 |
| 104 | 4-1/4 | 13 | 463.0 | 1018.6 | 182.2 | 1787 | 164.0 | 1608 | 189.5 | 1858 | 170.6 | 1673 |
| 112 | 4-5/8 | 14 | 536.7 | 1180.7 | 211.5 | 2074 | 190.3 | 1867 | 219.9 | 2157 | 198.0 | 1941 |
| 120 | 5 | 15 | 616.1 | 1355.4 | 239.7 | 2351 | 215.8 | 2116 | 249.3 | 2445 | 224.4 | 2201 |
| 128 | 5-1/4 | 16 | 701.1 | 1542.4 | 272.2 | 2669 | 244.9 | 2402 | 283.0 | 2776 | 254.7 | 2498 |
| 136 | 5-5/8 | 17 | 791.9 | 1742.2 | 306.0 | 3001 | 275.4 | 2701 | 318.3 | 3121 | 286.4 | 2809 |
| 144 | 6 | 18 | 887.3 | 1952.1 | 342.0 | 3354 | 307.8 | 3019 | 355.7 | 3488 | 320.1 | 3139 |
| 152 | 6-1/4 | 19 | 992.2 | 2182.8 | 380.3 | 3730 | 342.3 | 3357 | 395.6 | 3879 | 356.0 | 3491 |
| 160 | 6-5/8 | 20 | 1096.2 | 2411.6 | 420.8 | 4127 | 378.8 | 3714 | 437.7 | 4292 | 393.9 | 3863 |
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.
Made by normal polypropylene fibre — very easy to handle, keeps the same strength in wet or dry environment, floats and has good UV resistance.
| Fibre | Polypropylene |
| Specific gravity | 0.91–0.93 — floats |
| Melting point | 165 °C |
| Breaking elongation | 12–20% |
TOUGH-PP® 3-strand — by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL ton | MBL kN | LDBF ton | LDBF kN |
|---|---|---|---|---|---|---|---|---|
| 12 | 1/2 | 1-1/2 | 6.5 | 14.3 | 2.1 | 21 | 1.9 | 19 |
| 14 | 9/16 | 1-3/4 | 8.9 | 19.6 | 2.8 | 28 | 2.6 | 25 |
| 16 | 5/8 | 2 | 11.6 | 25.5 | 3.6 | 36 | 3.3 | 32 |
| 18 | 3/4 | 2-1/4 | 14.7 | 32.3 | 4.6 | 45 | 4.1 | 40 |
| 22 | 7/8 | 2-3/4 | 21.9 | 48.2 | 6.6 | 65 | 6.0 | 58 |
| 24 | 1 | 3 | 26.1 | 57.4 | 7.8 | 76 | 7.0 | 68 |
| 26 | 1-1/16 | 3-1/4 | 30.6 | 67.3 | 9.0 | 88 | 8.1 | 79 |
| 28 | 1-1/8 | 3-1/2 | 35.5 | 78.1 | 10.3 | 101 | 9.3 | 91 |
| 30 | 1-1/4 | 3-3/4 | 40.8 | 89.8 | 11.7 | 115 | 10.5 | 103 |
| 32 | 1-5/16 | 4 | 46.4 | 102.1 | 13.1 | 129 | 11.8 | 116 |
| 36 | 1-1/2 | 4-1/2 | 58.7 | 129.1 | 16.2 | 159 | 14.6 | 144 |
| 40 | 1-5/8 | 5 | 72.5 | 159.5 | 19.6 | 192 | 17.7 | 173 |
| 44 | 1-3/4 | 5-1/2 | 87.7 | 192.9 | 23.2 | 227 | 20.8 | 204 |
| 48 | 2 | 6 | 104.0 | 228.8 | 27.2 | 267 | 24.5 | 240 |
| 52 | 2-1/8 | 6-1/2 | 122.0 | 268.4 | 31.5 | 308 | 28.3 | 277 |
| 56 | 2-1/4 | 7 | 142.0 | 312.4 | 35.9 | 352 | 32.3 | 317 |
| 60 | 2-1/2 | 7-1/2 | 163.0 | 358.6 | 40.7 | 399 | 36.6 | 358 |
| 64 | 2-5/8 | 8 | 186.0 | 409.2 | 45.5 | 446 | 41.0 | 402 |
| 68 | 2-3/4 | 8-1/2 | 210.0 | 462.0 | 51.0 | 499 | 45.9 | 449 |
| 72 | 3 | 9 | 235.0 | 517.0 | 56.6 | 555 | 51.0 | 499 |
| 80 | 3-1/4 | 10 | 290.0 | 638.0 | 68.4 | 671 | 61.6 | 604 |
TOUGH-PP® 8-strand & 12-strand — by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | 8-str MBL t | 8-str MBL kN | 8-str LDBF t | 8-str LDBF kN | 12-str MBL t | 12-str MBL kN | 12-str LDBF t | 12-str LDBF kN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 1 | 3 | 23.5 | 51.7 | 9.5 | 93 | 8.5 | 84 | 9.9 | 97 | 8.9 | 87 |
| 26 | 1-1/16 | 3-1/4 | 27.5 | 60.6 | 11.0 | 108 | 9.9 | 97 | 11.5 | 112 | 10.3 | 101 |
| 28 | 1-1/8 | 3-1/2 | 32.0 | 70.4 | 12.6 | 124 | 11.4 | 112 | 13.1 | 129 | 11.8 | 116 |
| 30 | 1-1/4 | 3-3/4 | 36.7 | 80.7 | 14.3 | 141 | 12.9 | 127 | 14.9 | 146 | 13.4 | 132 |
| 32 | 1-5/16 | 4 | 41.8 | 92.0 | 16.3 | 160 | 14.6 | 144 | 16.9 | 166 | 15.2 | 149 |
| 36 | 1-1/2 | 4-1/2 | 52.8 | 116.2 | 20.3 | 200 | 18.3 | 180 | 21.2 | 207 | 19.0 | 187 |
| 40 | 1-5/8 | 5 | 65.3 | 143.7 | 24.9 | 245 | 22.5 | 220 | 25.9 | 254 | 23.4 | 229 |
| 44 | 1-3/4 | 5-1/2 | 78.9 | 173.6 | 29.8 | 292 | 26.8 | 263 | 31.0 | 303 | 27.9 | 273 |
| 48 | 2 | 6 | 93.6 | 205.9 | 35.0 | 343 | 31.5 | 309 | 36.4 | 357 | 32.8 | 321 |
| 52 | 2-1/8 | 6-1/2 | 109.8 | 241.6 | 40.8 | 400 | 36.7 | 360 | 42.4 | 416 | 38.2 | 374 |
| 56 | 2-1/4 | 7 | 127.8 | 281.2 | 46.8 | 459 | 42.1 | 413 | 48.7 | 477 | 43.8 | 429 |
| 60 | 2-1/2 | 7-1/2 | 146.7 | 322.7 | 53.1 | 521 | 47.8 | 469 | 55.2 | 541 | 49.7 | 487 |
| 64 | 2-5/8 | 8 | 167.4 | 368.3 | 59.7 | 586 | 53.8 | 527 | 62.1 | 609 | 55.9 | 548 |
| 68 | 2-3/4 | 8-1/2 | 189.0 | 415.8 | 67.0 | 657 | 60.3 | 592 | 69.7 | 683 | 62.7 | 615 |
| 72 | 3 | 9 | 211.5 | 465.3 | 74.6 | 732 | 67.2 | 659 | 77.6 | 761 | 69.9 | 685 |
| 80 | 3-1/4 | 10 | 261.0 | 574.2 | 90.6 | 888 | 81.5 | 799 | 94.2 | 923 | 84.8 | 831 |
| 88 | 3-5/8 | 11 | 315.9 | 695.0 | 108.4 | 1063 | 97.5 | 956 | 112.7 | 1104 | 101.4 | 994 |
| 96 | 4 | 12 | 375.3 | 825.7 | 127.4 | 1250 | 114.7 | 1125 | 132.5 | 1299 | 119.3 | 1169 |
| 104 | 4-1/4 | 13 | 441.0 | 970.2 | 147.4 | 1446 | 132.7 | 1301 | 153.3 | 1503 | 138.0 | 1352 |
| 112 | 4-5/8 | 14 | 511.2 | 1124.6 | 171.1 | 1678 | 154.0 | 1510 | 177.9 | 1744 | 160.1 | 1569 |
| 120 | 5 | 15 | 586.8 | 1291.0 | 193.9 | 1902 | 174.5 | 1711 | 201.7 | 1976 | 181.5 | 1779 |
| 128 | 5-1/4 | 16 | 667.8 | 1469.2 | 220.2 | 2160 | 198.2 | 1944 | 229.1 | 2245 | 206.1 | 2020 |
| 136 | 5-5/8 | 17 | 754.2 | 1659.2 | 247.5 | 2428 | 222.8 | 2185 | 257.4 | 2523 | 231.7 | 2271 |
| 144 | 6 | 18 | 845.1 | 1859.2 | 276.7 | 2713 | 249.0 | 2442 | 287.7 | 2820 | 259.0 | 2538 |
| 152 | 6-1/4 | 19 | 945.0 | 634.4 | 307.6 | 3017 | 276.9 | 2715 | 319.9 | 3135 | 287.9 | 2822 |
| 160 | 6-5/8 | 20 | 1044.0 | 700.9 | 340.4 | 3338 | 306.3 | 3004 | 354.0 | 3469 | 318.6 | 3122 |
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.
This rope floats and does not absorb water, making it soft on the hand, easy to handle and flexible. The special nature of the filaments contributes highly to increased abrasion resistance — mainly used on fishing vessels and inland shipping.
| Fibre | High-tenacity Polyethylene |
| Specific gravity | 0.94–0.97 |
| Melting point | 132–135 °C |
| Construction | 3-strand |
TOUGH-POLYETHYLENE® — 3-strand by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL ton | MBL kN |
|---|---|---|---|---|---|---|
| 4 | 5/32 | 1/2 | 0.9 | 2.0 | 0.3 | 3 |
| 6 | 1/4 | 3/4 | 1.8 | 4.0 | 0.6 | 6 |
| 8 | 5/16 | 1 | 3.1 | 6.8 | 0.9 | 9 |
| 10 | 13/32 | 1-1/4 | 4.9 | 10.8 | 1.4 | 14 |
| 12 | 1/2 | 1-1/2 | 7.1 | 15.6 | 2.3 | 23 |
| 14 | 9/16 | 1-3/4 | 9.1 | 20.0 | 2.9 | 28 |
| 16 | 5/8 | 2 | 11.2 | 24.6 | 3.4 | 33 |
| 18 | 3/4 | 2-1/4 | 16.1 | 35.4 | 4.7 | 46 |
| 20 | 13/16 | 2-1/2 | 19.5 | 42.9 | 5.3 | 52 |
| 22 | 7/8 | 2-3/4 | 22.0 | 48.4 | 6.5 | 64 |
| 24 | 1 | 3 | 27.8 | 61.2 | 7.9 | 77 |
| 26 | 1-1/16 | 3-1/4 | 31.5 | 69.3 | 8.8 | 86 |
| 28 | 1-1/8 | 3-1/2 | 35.3 | 77.7 | 9.8 | 96 |
| 30 | 1-1/4 | 3-3/4 | 42.7 | 93.9 | 11.8 | 116 |
| 32 | 1-5/16 | 4 | 47.0 | 103.4 | 13.0 | 127 |
| 36 | 1-1/2 | 4-1/2 | 61.0 | 134.2 | 16.7 | 164 |
| 40 | 1-5/8 | 5 | 71.1 | 156.4 | 19.6 | 192 |
| 48 | 2 | 6 | 106.9 | 235.2 | 28.7 | 281 |
| 56 | 2-1/4 | 7 | 136.2 | 299.6 | 36.4 | 357 |
| 64 | 2-5/8 | 8 | 186.0 | 409.2 | 49.5 | 485 |
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.
Works well in a variety of marine applications requiring durable, rot-proof lines that sink into water. Good strength and resistance to abrasion and UV light — mainly used in commercial fishing, particularly as net bottom lines.
| Fibre | HT Polypropylene with lead core |
| Sinking | Yes |
| Abrasion resistance | Good |
| Construction | 3-strand |
TOUGH-LEAD® — 3-strand by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL ton | MBL kN |
|---|---|---|---|---|---|---|
| 6 | 1/4 | 3/4 | 2.6 | 5.7 | 0.5 | 5 |
| 8 | 5/16 | 1 | 4.7 | 10.3 | 0.9 | 9 |
| 9 | 3/8 | 1-1/8 | 6.0 | 13.2 | 1.0 | 10 |
| 10 | 13/32 | 1-1/4 | 7.5 | 16.5 | 1.3 | 13 |
| 12 | 1/2 | 1-1/2 | 10.5 | 23.1 | 1.9 | 19 |
| 14 | 9/16 | 1-3/4 | 14.3 | 31.5 | 2.6 | 25 |
| 16 | 5/8 | 2 | 18.8 | 41.4 | 3.2 | 31 |
| 18 | 3/4 | 2-1/4 | 22.5 | 49.5 | 4.0 | 39 |
| 20 | 13/16 | 2-1/2 | 29.5 | 64.9 | 4.8 | 47 |
| 22 | 7/8 | 2-3/4 | 35.0 | 77.0 | 5.9 | 58 |
| 24 | 1 | 3 | 41.3 | 90.9 | 6.9 | 68 |
| 26 | 1-1/16 | 3-1/4 | 49.5 | 108.9 | 7.9 | 77 |
| 28 | 1-1/8 | 3-1/2 | 57.5 | 126.5 | 9.0 | 88 |
| 30 | 1-1/4 | 3-3/4 | 63.8 | 140.4 | 10.4 | 102 |
| 32 | 1-5/16 | 4 | 71.3 | 156.9 | 11.7 | 115 |
| 36 | 1-1/2 | 4-1/2 | 91.0 | 200.2 | 13.4 | 131 |
| 40 | 1-5/8 | 5 | 112.5 | 247.5 | 17.7 | 173 |
| 45 | 1-13/16 | 5-5/8 | 142.5 | 313.5 | 21.7 | 212 |
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.
From anti-snap-back mooring to net-bottom lead line — one series, every utility duty.
Snap Back Reducer core absorbs energy on failure.
Superior breaking strength and abrasion over normal composite rope.
Lighter than polyester, stronger than polyolefin.
Polypropylene handling with polyester durability.
Excellent break strength and abrasion resistance.
Long working life for industrial and fishing duty.
Use the specification above directly in our calculators.
